Used Taylor Winfield Projection Welder

WSI-SELECT – In-Stock and For Sale at Weld Systems Integrators

WSI Serial #: 20603

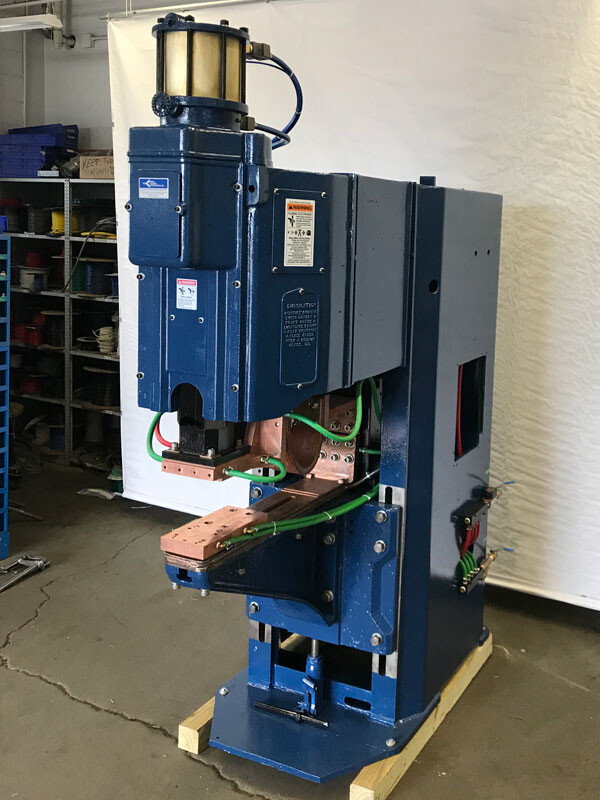

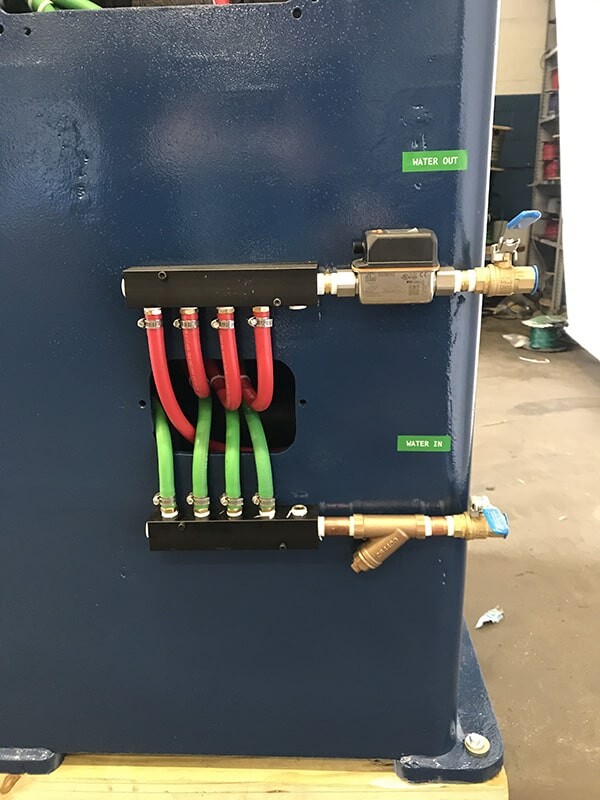

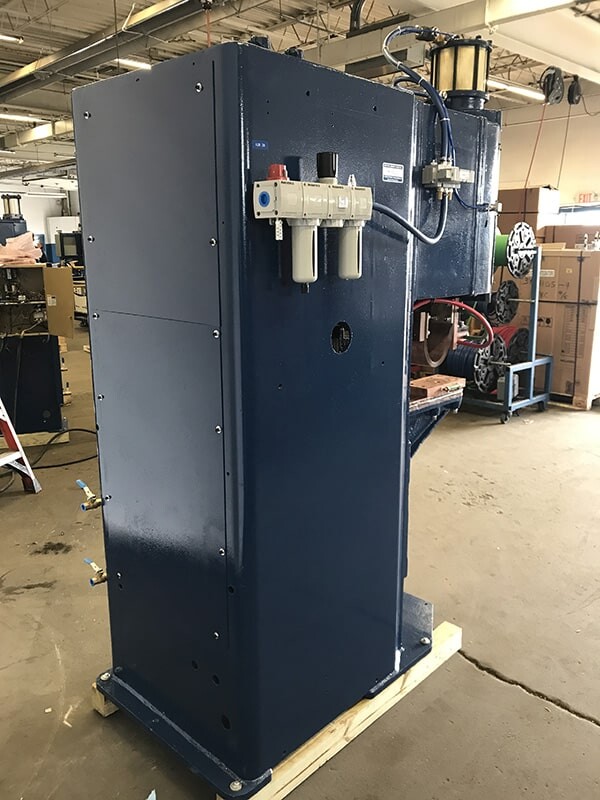

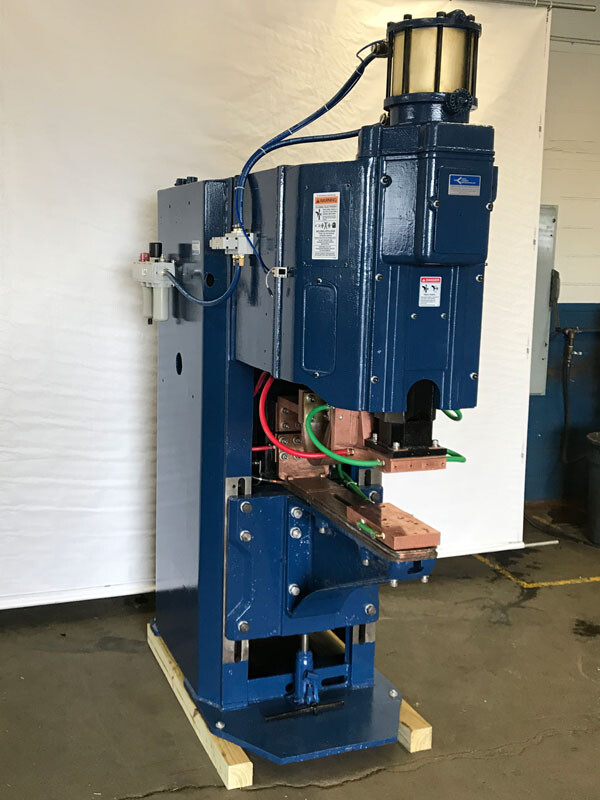

Rebuilt Taylor Winfield Projection Welder [ WSI stock / serial #: 20603 ] FOR SALE from Weld Systems Integrators. Welder is in excellent condition including: rebuilt transformer and cylinder.  New parallel water manifolds, water hoses, IFM flow switch, air prep/valve, air flow controls, air pressure switch.

Immediate availability upon customer weld control selection. Features include – 480 VAC, single-phase, 150 KVA, 8″ diameter weld cylinder, 4″ stroke,  30″ throat depth to the center of electrodes, and 6-month warranty.

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or +1-216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter WSI Serial #: 20603 on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or +1-216-475-5629 and ask to speak with a WSI Engineer.

    Quote Request
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    Country:
    * Phone:
    * EMail:
    * Stock / Serial #:
    Tell us about your application:

    * Required


    If you have any issues submitting this form, please call Weld Systems Integrators at
    844-WSI-WELD or +1-216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20603
    Manufacturer Name: Taylor Winfield
    Type: Projection Welder
    Mfg. Model #: –
    KVA: 150
    Voltage 480
    Phase: Single
    Low Secondary Voltage: n / a
    High Secondary Voltage: n / a
    # of Tap Switch Positions: Hi / Low and 4 Position tap
    Max. Secondary Current: 18.8 K Amps
    Throat Depth to Center of Platens: 30″
    Platen Size: Non T Slot,  8″ x 8″ – Mounting Pad
    Throat Depth to Center of Electrodes: n / a
    Arm Diameter: n / a
    Holder Diameter: n / a
    Electrode Size: n / a
    Cylinder Type: Air
    Cylinder Diameter: 8″
    Cylinder Stroke: 4″
    Maximum Weld Force, #’s: 4200 lbs.
    Weld Control Manufacturer: Customer Selection
    Weld Control Mfg. Model #: Customer Selection
    Disconnect Size: n / a
    Initiation: Customer Selection
    General Condition: Rebuilt Welder in excellent condition including rebuilt transformer and cylinder.  New parallel water manifolds, water hoses, IFM flow switch, air prep/valve, airflow controls, and air pressure switch.
    Additional Details: –
    Warranty: 6 months
    Availability: Immediate upon customer weld control selection
