USED WSI Projection-Type Welder

WSI-SELECT – In-Stock and For Sale at Weld Systems Integrators

WSI Serial #: 20628

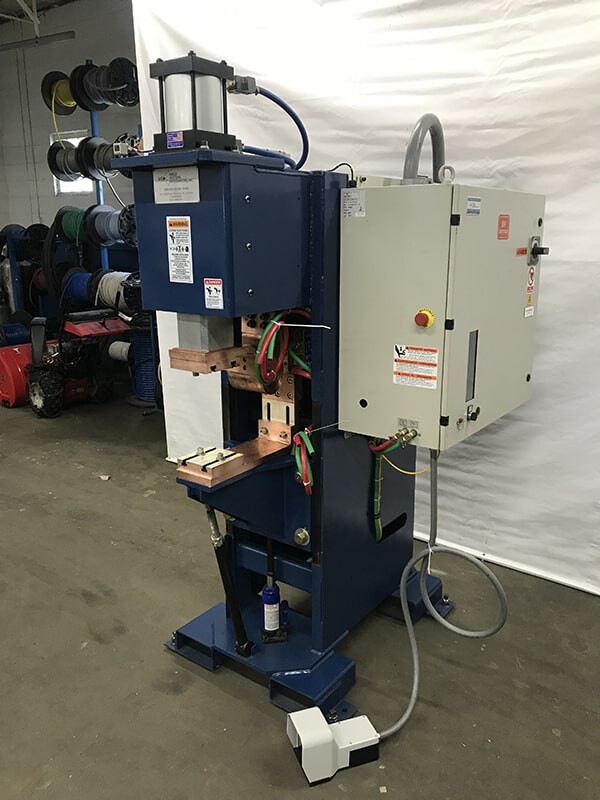

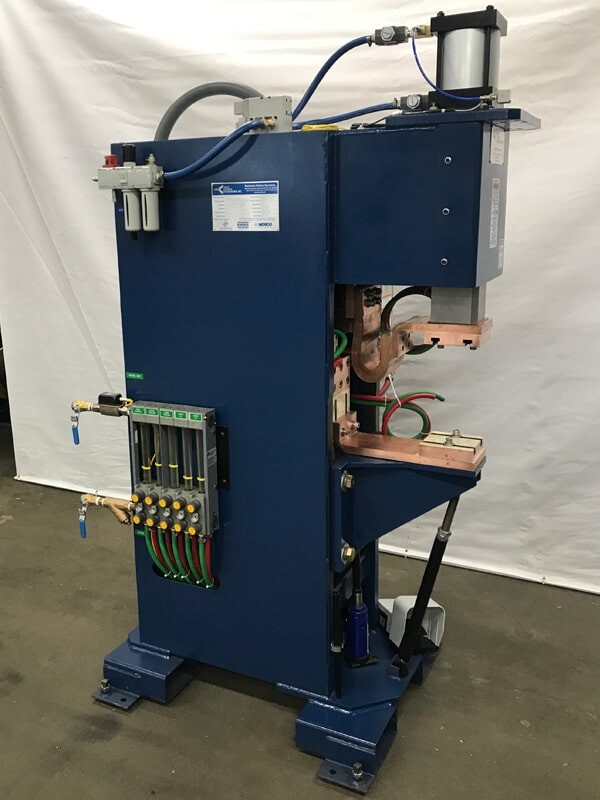

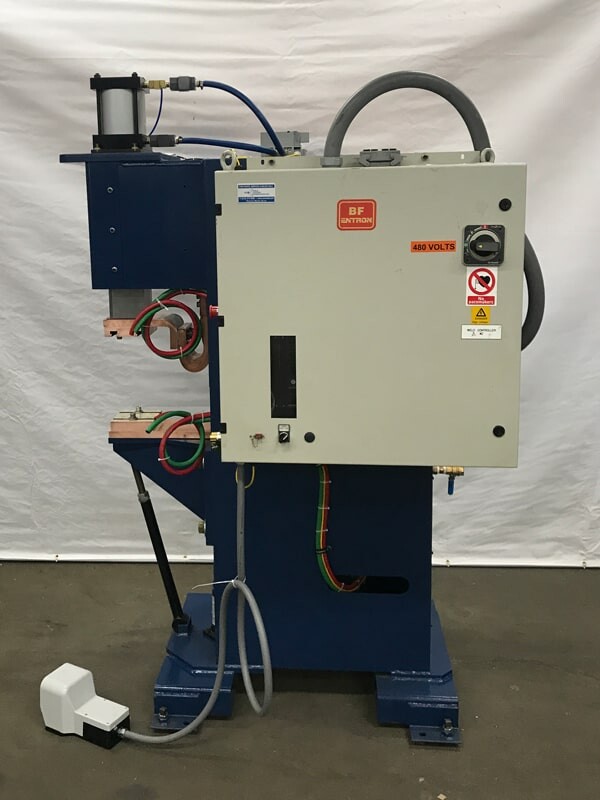

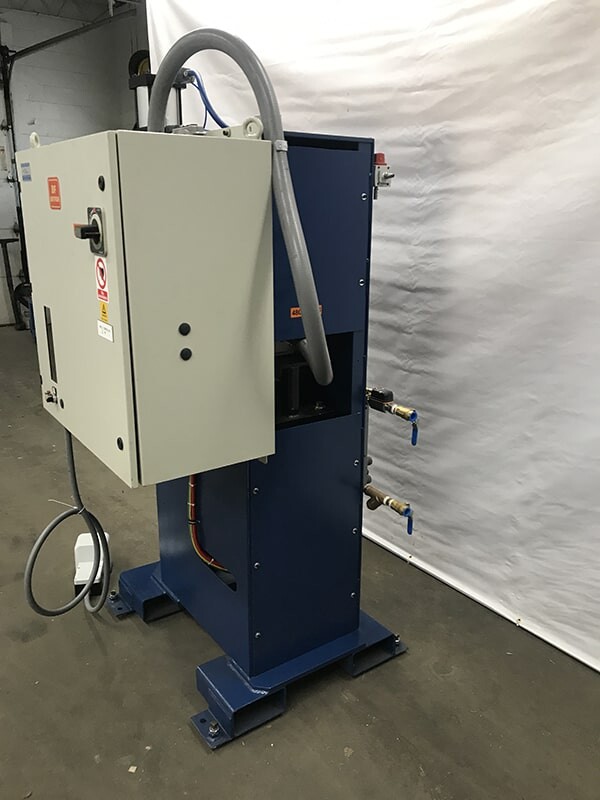

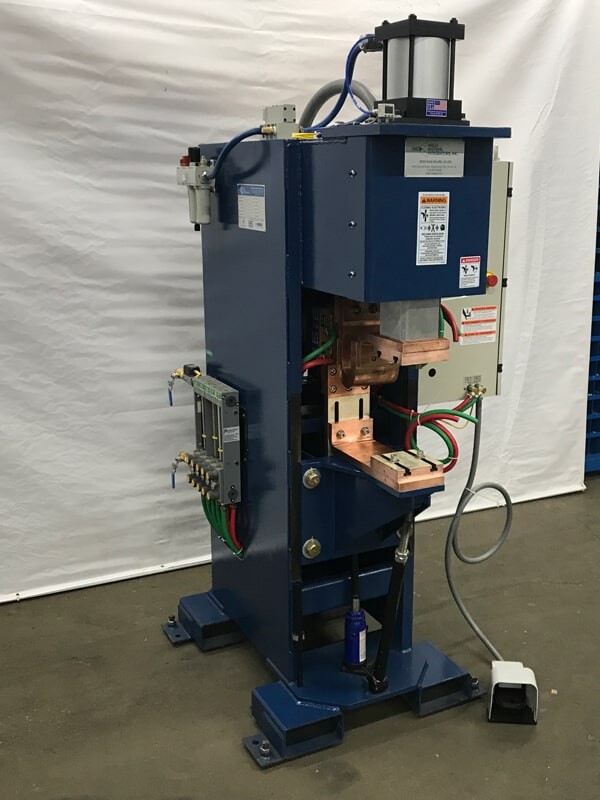

Used WSI size 2 projection-type welder FOR SALE at Weld Systems Integrators [ WSI stock / serial #: 20628 ]. This welder has been manufactured with all new components except for the remanufactured 170 KVA MFDC transformer, and the reconditioned IPAC 1000. Check out the pictures. Everything else like the welder frame, all of the copper secondary, air system, water system, ram and bearings, and even the paint job is brand new! Completely tested under full power, ready for prompt shipment. It is warranted as NEW equipment!

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or +1-216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter WSI Serial #: 20628 on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or +1-216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information



    * Required


    If you experience any issues submitting this form, give us a call at 844-WSI-WELD or +1-216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20628
    Manufacturer Name: WSI
    Type: Projection Type Welder
    Mfg. Model #: WSI-W2-12-CD-170-6X4-480/3-250
    KVA: 170 MFDC
    Voltage 480
    Phase: Three
    Low Secondary Voltage: 13
    High Secondary Voltage: 13
    # of Tap Switch Positions: 1x, 50:1
    Max. Secondary Current: 48,000
    Throat Depth to Center of Platens: 12″
    Platen Size: 6″ x 6″
    Throat Depth to Center of Electrodes: n / a
    Arm Diameter: n / a
    Holder Diameter: n / a
    Electrode Size: n / a
    Cylinder Type: Air
    Cylinder Diameter: 6″
    Cylinder Stroke: 4″
    Maximum Weld Force, #’s: 2,250
    Weld Control Manufacturer: Entron
    Weld Control Mfg. Model #: IPAK 1000
    Disconnect Size: 250 Amps
    Initiation: 2 Stage Foot Switch
    General Condition: This welder has been manufactured with all new components except for the remanufactured 170 KVA MFDC transformer, and the reconditioned IPAC 1000. Check out the pictures. Everything else like the welder frame, all of the copper secondary, air system, water system, ram and bearings, and even the paint job is brand new! Completely tested under full power, ready for prompt shipment. It is warranted as NEW equipment!
    Additional Details: New two-stage foot switch installed, LOTO devices installed on air and water inlets, and water flow switch and air pressure switch installed.
    Warranty: 1 Year
    Availability: Immediate
