Rebuilt LORS Dual Spot Welder

WSI-SELECT – In-Stock and For Sale at Weld Systems Integrators

WSI Serial #: 20591

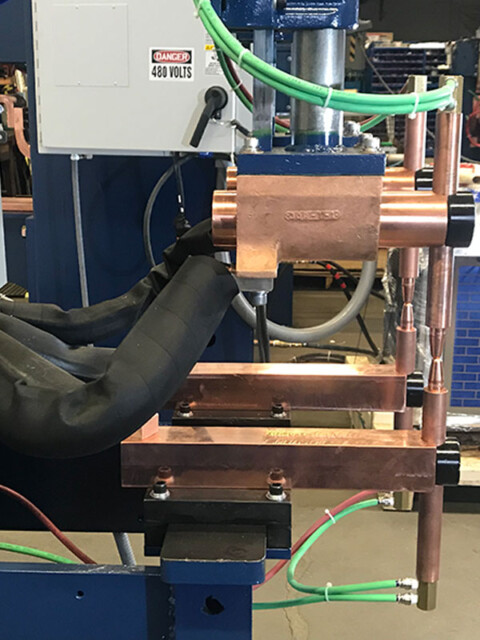

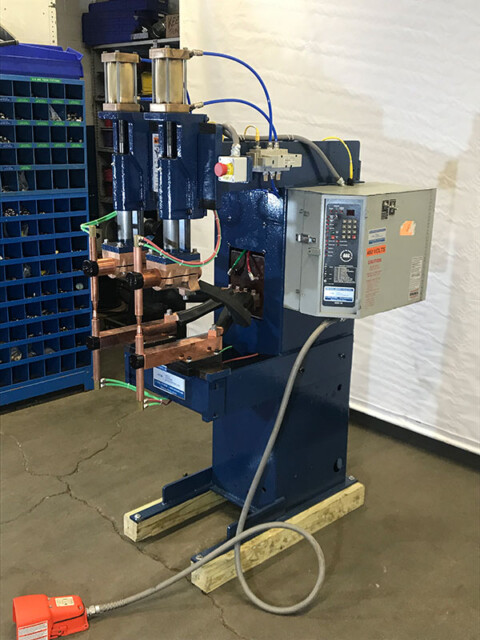

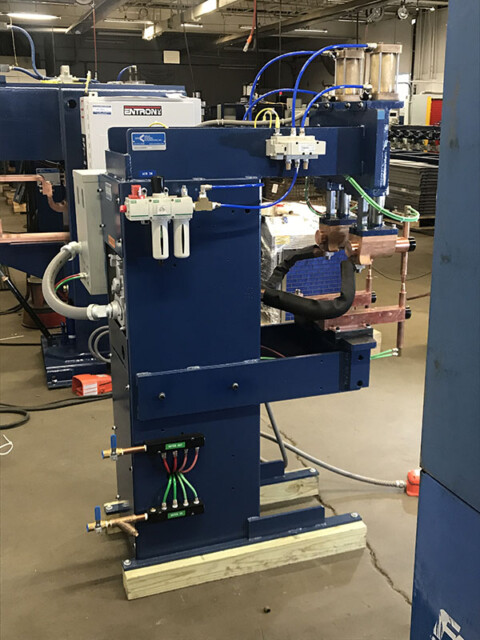

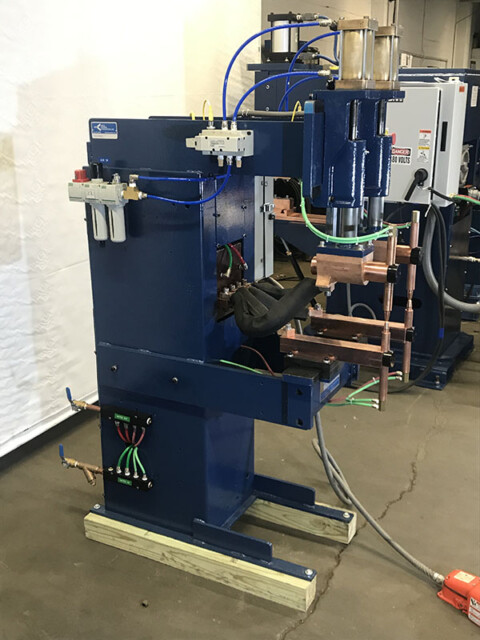

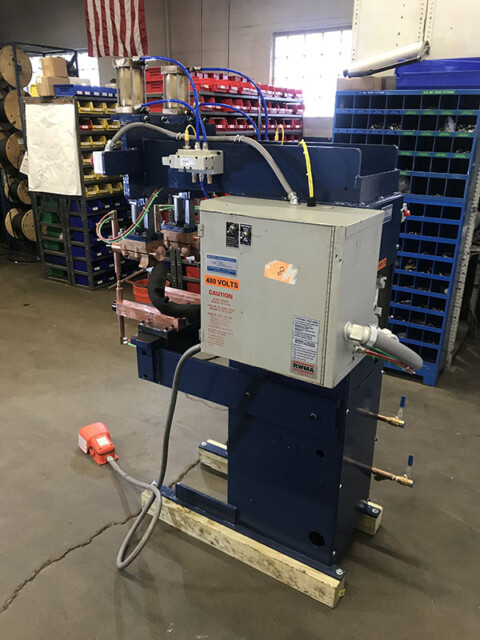

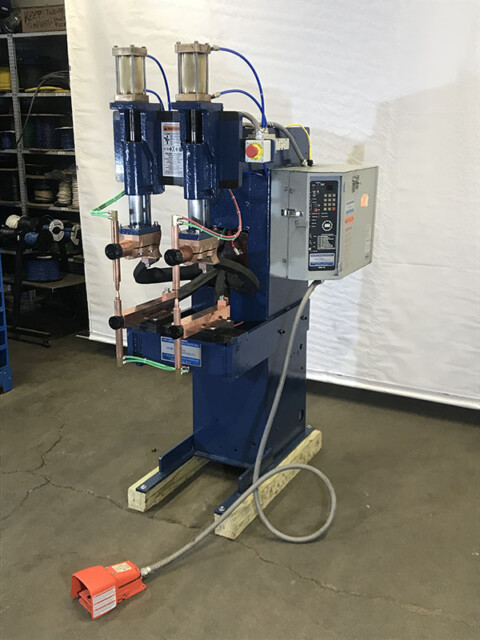

Rebuilt LORS dual spot welder [ WSI Serial #: 20591 ] in excellent condition, IN-STOCK at Weld Systems Integrators. Includes new hose package, air valve and FRL.

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or +1-216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter WSI Serial #: 20591 on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or +1-216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #:20591
    Manufacturer Name: LORS
    Type: Dual Spot
    Mfg. Model #: 516
    KVA: 85
    Voltage: 480
    Phase: Single
    Low Secondary Voltage: 5.3
    High Secondary Voltage: 7.1
    # of Tap Switch Positions: 4
    Max. Secondary Current: 25 K amps
    Throat Depth to Center of Platens: n / a
    Platen Size: n / a
    Throat Depth to Center of Electrodes: 18″
    Arm Diameter: 2″ square
    Holder Diameter: 25mm
    Electrode Size: 2 MT
    Cylinder Type: Air
    Cylinder Diameter: 3.25
    Cylinder Stroke: 4″
    Maximum Weld Force, #’s: 650
    Weld Control Manufacturer: Intertron
    Weld Control Mfg. Model #: 108
    Disconnect Size: none
    Initiation: 2-Stage Foot Switch
    General Condition: Rebuilt Welder, in excellent condition. New hose package, air valve and FRL.
    Additional Details: –
    Warranty: 1-Year
    Availability: Immediate
