SOLD – Used McCreery Spot Welder from Weld Systems Integrators (WSI)

WSI Stock / Serial #: 20605

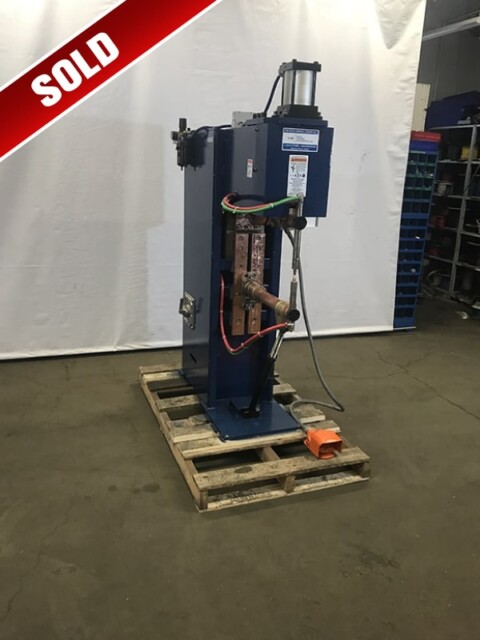

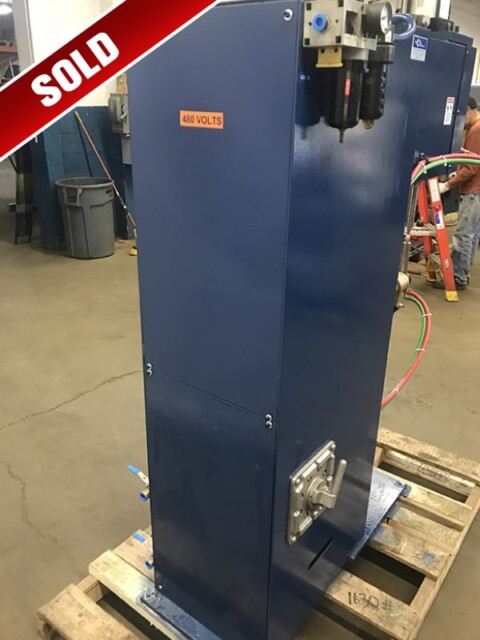

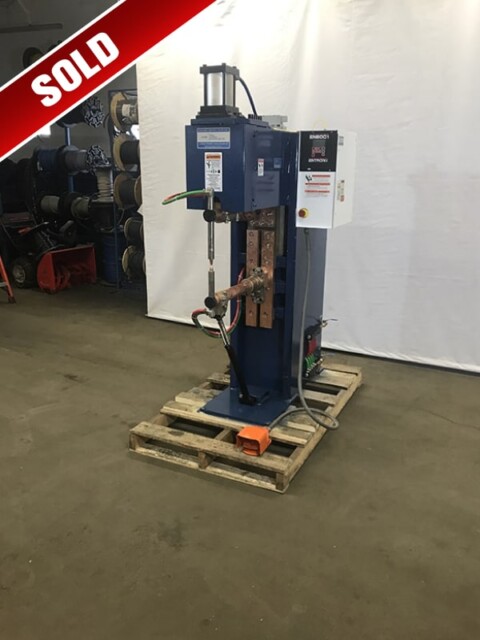

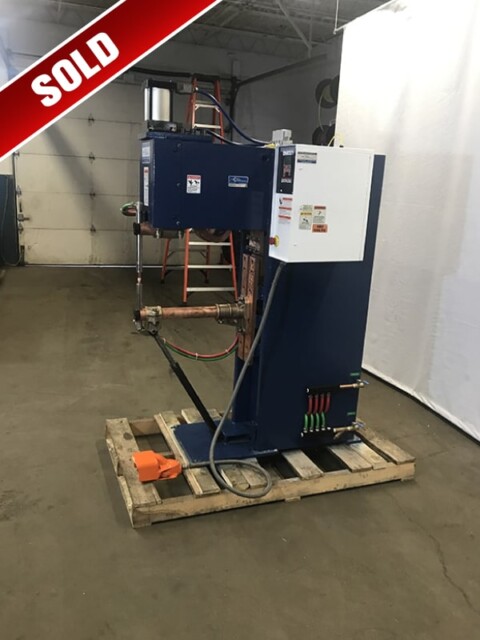

Reconditioned McCreery spot welder in excellent condition. Welder includes new Entron EN6001 retrofit kit, new parallel water manifolds, new air and water hose, air valve and safety labels. Completely tested.

SOLD – used McCreery spot welder, original mfg. model #A1-75-24 FOR SALE from Weld Systems Integrators. Immediate availability. Features include – 440 VAC, single-phase, 75 KVA, 5″ diameter weld cylinder, 4″ stroke,  24″ throat depth to center of electrodes and Entron EN6001E upgraded retro kit.

RETURN TO ALL USED INVENTORY

QUOTE REQUEST!

SOLD – McCreery spot welder – WSI Stock / Serial #:20605. If you’re looking for a similar spot welder, please submit the following form.

If you have any questions on used equipment available from Weld Systems Integrators, please call 844-WSI-WELD or +1-216-475-5629 and ask to speak with a WSI Engineer.

SPECIFICATIONS WSI Stock / Serial #: 20605
Manufacturer Name: McCreery
Type: Spot Welder
Mfg. Model #: A1-75-24
KVA: 75
Voltage 440
Phase: Single
Low Secondary Voltage: 5.7
High Secondary Voltage: 10
# of Tap Switch Positions: 8
Max. Secondary Current: 21 K Amps
Throat Depth to Center of Platens: n / a
Platen Size: n / a
Throat Depth to Center of Electrodes: 24″
Arm Diameter: 2-1/2″
Holder Diameter: 1-1/4″
Electrode Size: 5 RW
Cylinder Type: Air
Cylinder Diameter: 5″
Cylinder Stroke: 4″
Maximum Weld Force, #’s: 1650 lbs.
Weld Control Manufacturer: Entron
Weld Control Mfg. Model #: EN6001E upgraded retro kit
Disconnect Size: n / a
Initiation: 2 stage foot switch
General Condition: Great Working Reconditioned welder includes: New Entron EN6001 retrofit kit, new parallel water manifolds, new air and water hose, air valve and safety labels.
Additional Details:
Warranty: 1 year
Availability: Immediate

Enter WSI Stock / Serial #: 20605 on the following quote request form.
