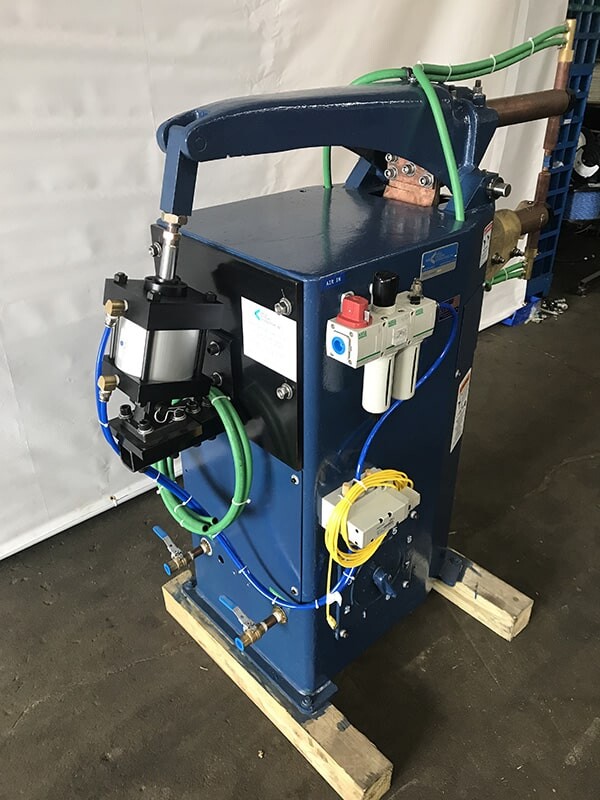

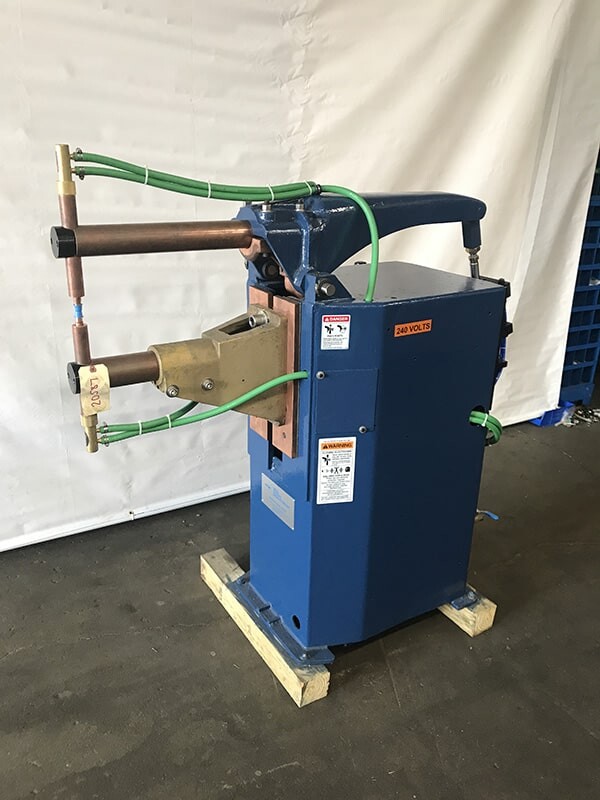

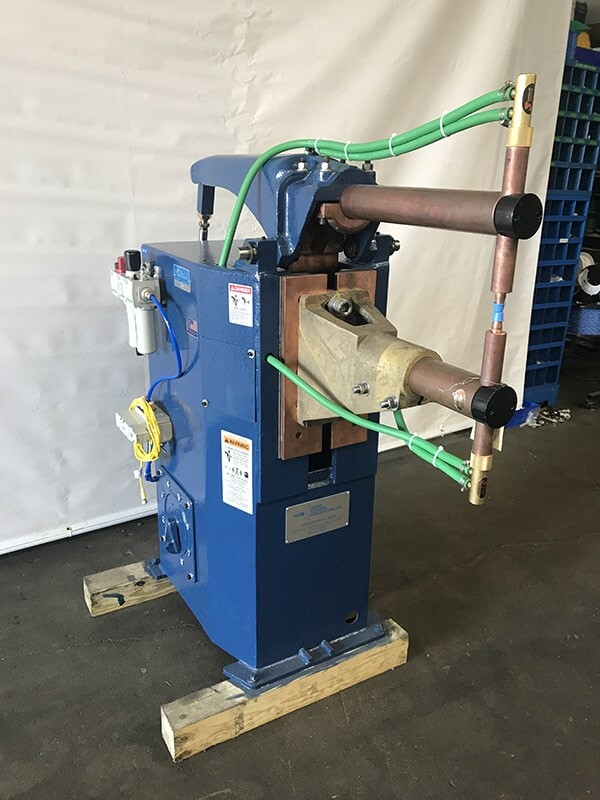

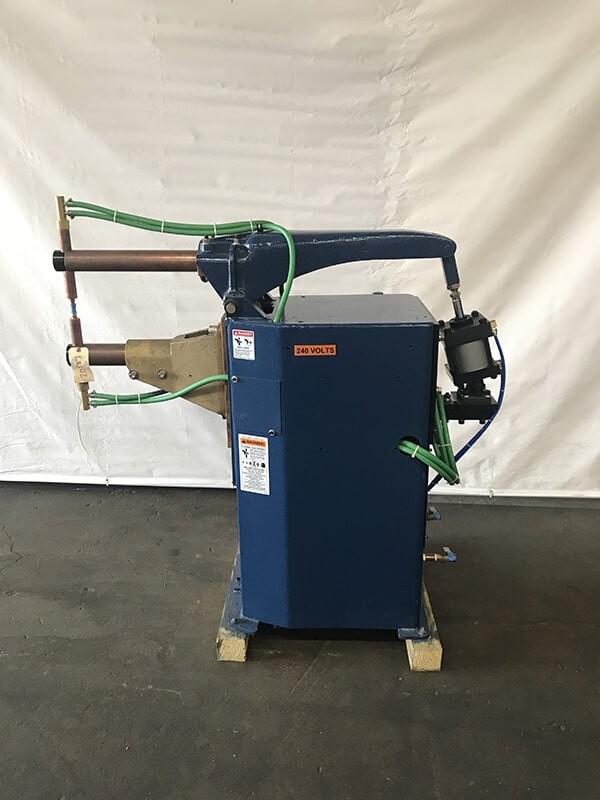

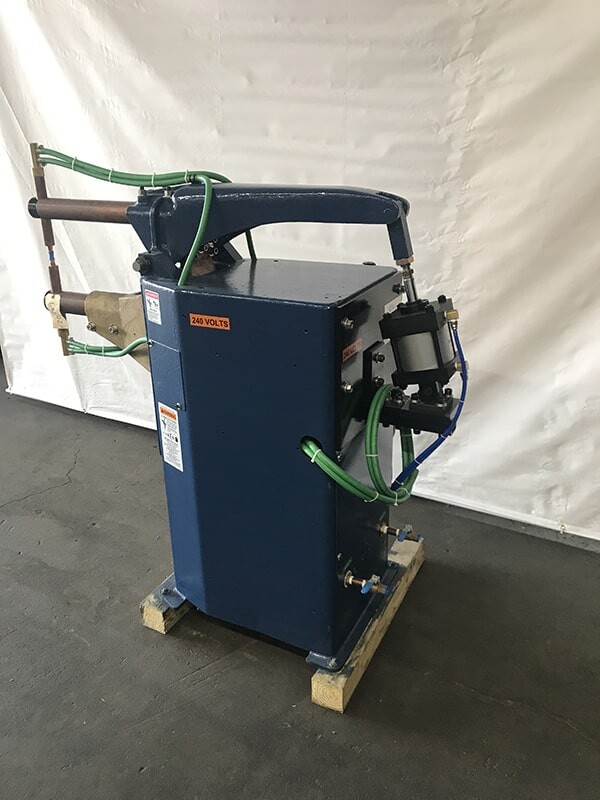

Used Federal Rocker Arm Welder

WSI-SELECT – In-Stock and For Sale at Weld Systems Integrators

WSI Serial #: 20587

Used Federal rocker arm welder [ WSI stock / serial #: 20587 ] FOR SALE at Weld Systems Integrators. Remanufactured Welder – welder stripped of all components, primed and painted. Transformer reconditioned, new air cylinder, filter, regulator, lubricator, color-coded air hosing, and flow control valves. New water system, including manifolds, strainer, LOTO shut-offs, and color-coded hosing. New holders and electrodes.

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or +1-216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter WSI Serial #: 20587 on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or +1-216-475-5629 and ask to speak with a WSI Engineer.

    Quote Request
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    Country:
    * Phone:
    * EMail:
    * Stock / Serial #:
    Tell us about your application:

    * Required


    If you have any issues submitting this form, please call Weld Systems Integrators at
    844-WSI-WELD or +1-216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20587
    Manufacturer Name: Federal
    Type: Rocker Arm
    Mfg. Model #: RA-3-24
    KVA: 50
    Voltage 220
    Phase: Single
    Low Secondary Voltage: n / a
    High Secondary Voltage: n / a
    # of Tap Switch Positions: 8
    Max. Secondary Current: 22.6K Amps
    Throat Depth to Center of Platens: n / a
    Platen Size: n / a
    Throat Depth to Center of Electrodes: 24″
    Arm Diameter: 2-1/2″ Top / 2-3/4″ Bottom
    Holder Diameter: 1-1/4″
    Electrode Size: 5 RW
    Cylinder Type: Air
    Cylinder Diameter: 5″
    Cylinder Stroke: 2″
    Maximum Weld Force, #’s: 1000 Lbs @ 80 PSI
    Weld Control Manufacturer: Customer selection
    Weld Control Mfg. Model #: Customer selection
    Disconnect Size: n / a
    Initiation: 2 Stage Foot Switch
    General Condition: Remanufactured Welder – welder stripped of all components, primed and painted. Transformer reconditioned, new air cylinder, filter, regulator, lubricator, color-coded air hosing, and flow control valves. New water system, including manifolds, strainer, LOTO shut-offs, and color-coded hosing. New holders and electrodes.
    Additional Details: Two-stage foot switch installed.
    Warranty: 1 Year
    Availability: Immediate
