USED Taylor Winfield Press / Projection Welder

WSI-SELECT – In-Stock and For Sale at Weld Systems Integrators

WSI Serial #: 20641

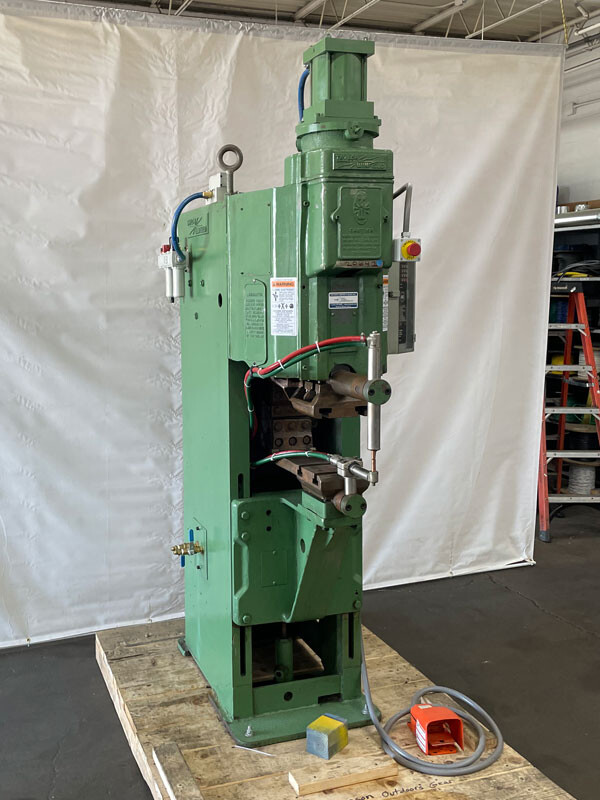

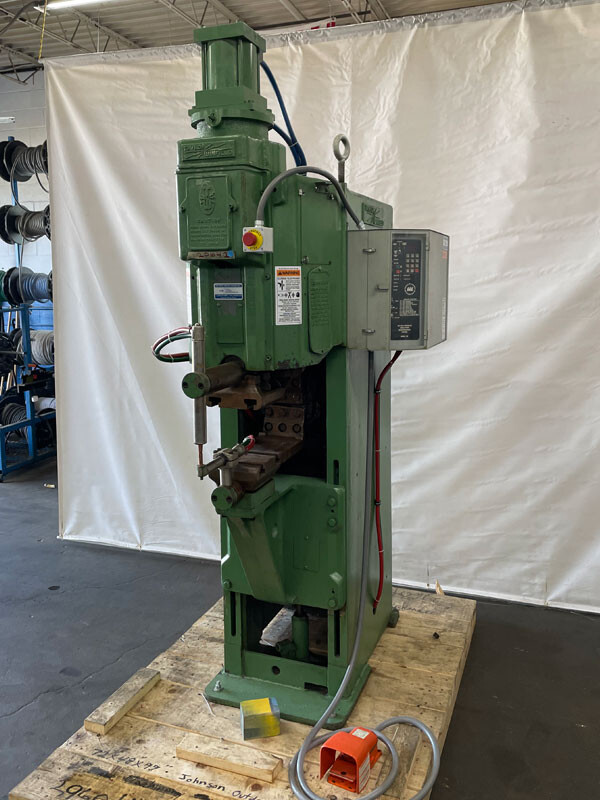

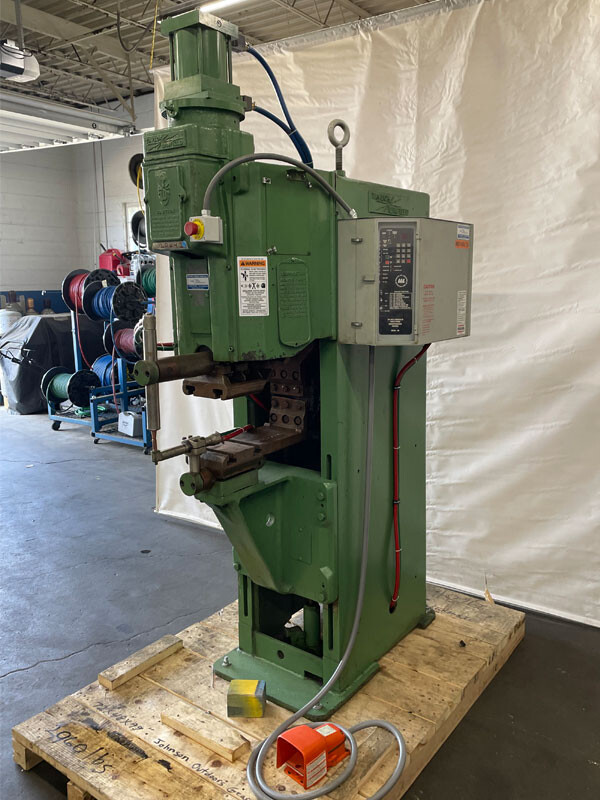

USED Taylor Winfield press / projection welder FOR SALE at Weld Systems Integrators [ WSI stock / serial #: 20641 ]. Great, used heavy-duty Taylor Winfield, 100 KVA, 480 volts, single phase projection welder. This welder has been thoroughly tested and qualified. New hosing, an emergency stop switch, safety stickers, air, and foot switch have been installed. The arms, holders, and electrodes are included.

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or +1-216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter WSI Serial #: 20641 on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or +1-216-475-5629 and ask to speak with a WSI Engineer.

    Quote Request
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    Country:
    * Phone:
    * EMail:
    * Stock / Serial #:
    Tell us about your application:

    * Required


    If you have any issues submitting this form, please call Weld Systems Integrators at
    844-WSI-WELD or +1-216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20641
    Manufacturer Name: Taylor Winfield
    Type: Press / Projection
    Mfg. Model #: ERB-30-150
    KVA: 100
    Voltage 440
    Phase: Single
    Low Secondary Voltage: 2.3
    High Secondary Voltage: 6.6
    # of Tap Switch Positions: 8
    Max. Secondary Current: 18
    Throat Depth to Center of Platens: 24″
    Platen Size: 8″ x 8″
    Throat Depth to Center of Electrodes: 24″
    Arm Diameter: 3″
    Holder Diameter: 1.5″
    Electrode Size: #2MT
    Cylinder Type: Air
    Cylinder Diameter: 6″
    Cylinder Stroke: 4″
    Maximum Weld Force, #’s: 2,270
    Weld Control Manufacturer: Intertron
    Weld Control Mfg. Model #: 108
    Disconnect Size: n / a
    Initiation: 2-Stage Footswitch
    General Condition: Great, used heavy-duty Taylor Winfield, 100 KVA, 480 volts, single phase projection welder. This welder has been thoroughly tested and qualified. New hosing, an emergency stop switch, safety stickers, air, and foot switch have been installed. The arms, holders, and electrodes are included.
    Additional Details: The welder has been fully tested and is ready for heavy-duty production. Either the T-slot platens or the spot welding arms can be utilized.
