Used Tweezer Weld Bench Welder FOR SALE

35 kVA | 8,000 Amps | 517 Force lbs.

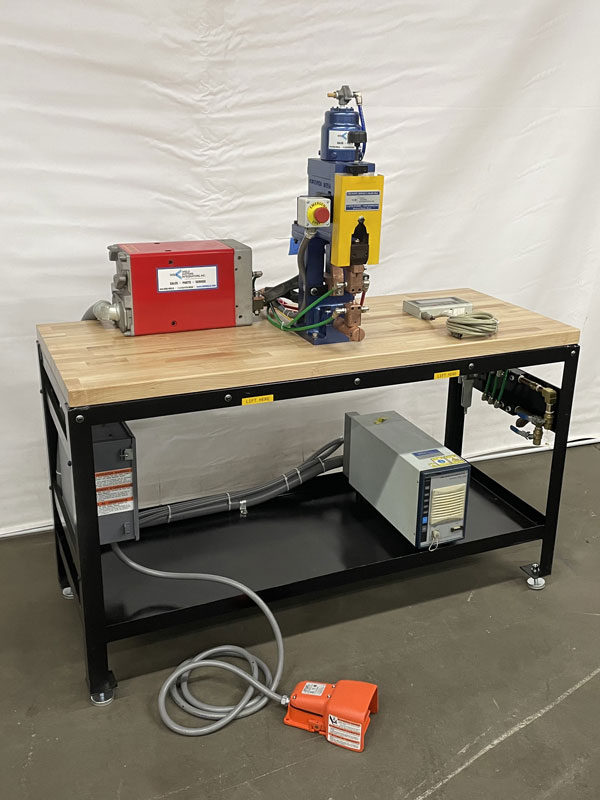

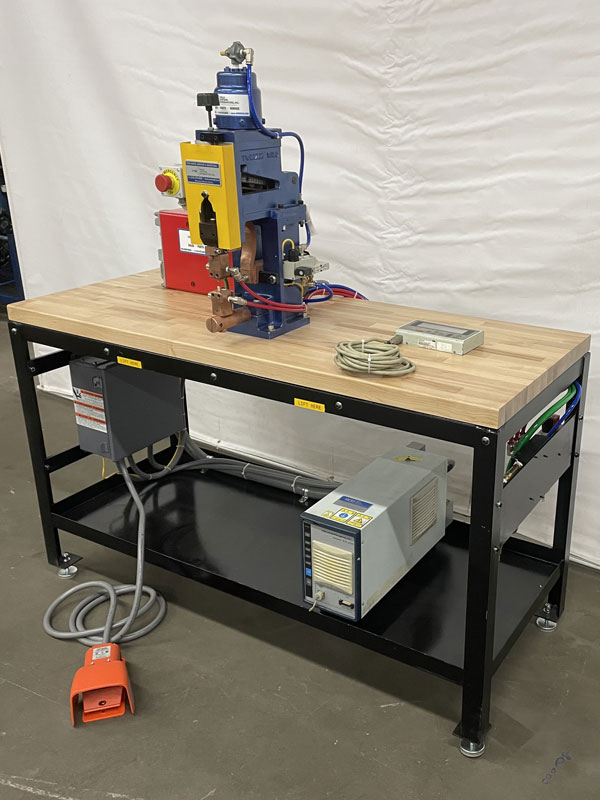

Used 35 kVA Tweezer Weld bench welder FOR SALE at Weld Systems Integrators (WSI stock / serial #: 20634).

  • Manufacturer: Tweezer
  • WSI stock #: 20634
  • Category: Used rocker welder
  • Power @ 50% duty cycle:  35 kVA
  • Power supply:  Single-phase AC
  • Max. weld current: 8,000 amps
  • Max. weld force: 517 lbs.
  • Throat depth to center of electrodes: 6 in.
  • Controls: Miyachi AC Inverter – MIB-200A-00-00

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter “20634” on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20634
    Manufacturer name: Tweezer Weld
    Type: Remanufactured bench welder
    Mfg. model #: n / a
    kVA: 35 kVA
    Voltage: 220 V
    Phase: Single-phase AC
    High secondary voltage: 3.55 V
    Low secondary voltage: 2.47 V
    Max. secondary current (5cy @ 95%): 8,000 amps
    Throat depth: 6″
    Platen size: n / a
    Arm diameter: n / a
    Holder diameter: n / a
    Cylinder type: Bladder filled
    Cylinder diameter: 4-1/2″
    Cylinder stroke: 1″
    Max. force (force @ 80 PSI): 517 lbs.
    Weld control: Miyachi AC Inverter
    Weld control model: MIB-200A-00-00
    Disconnect size: 60 amp
    Tap switch / positions: 4 positions
    Initiation: Foot switch
    General condition: Used
    Warranty: 90 days
    Availability: Immediate
