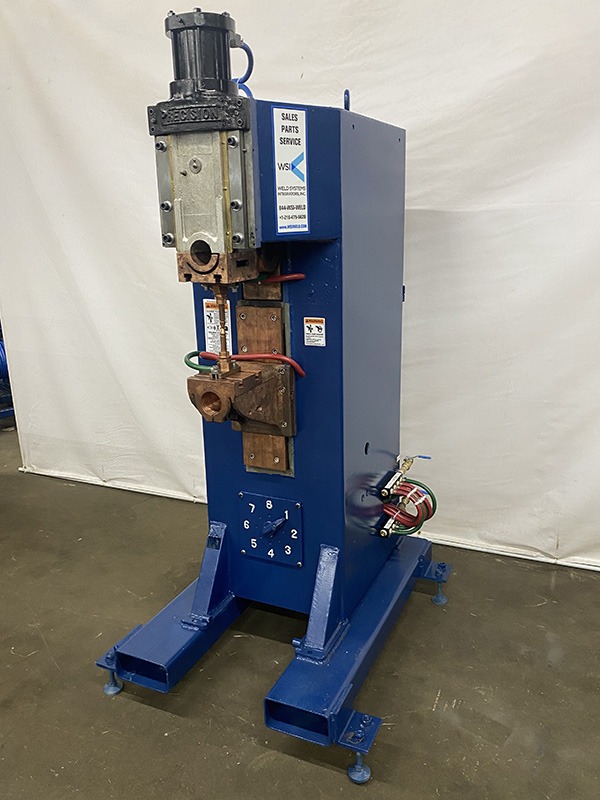

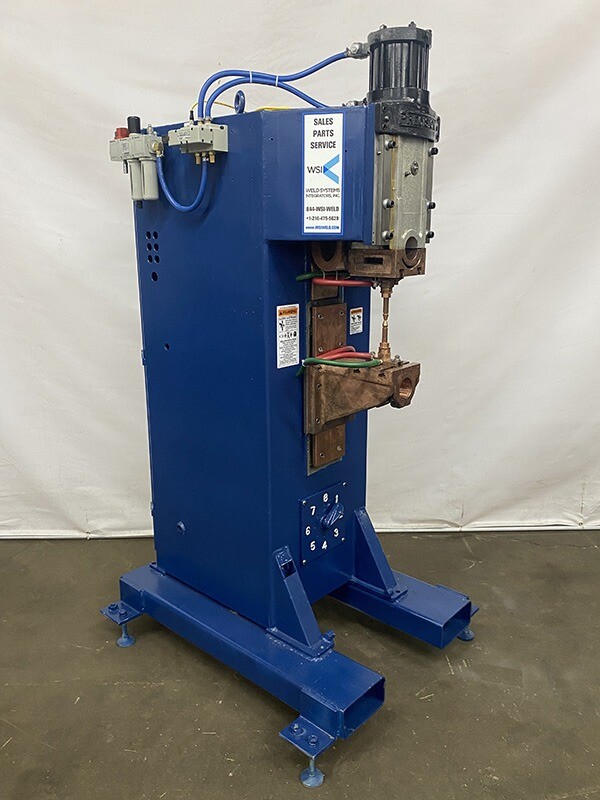

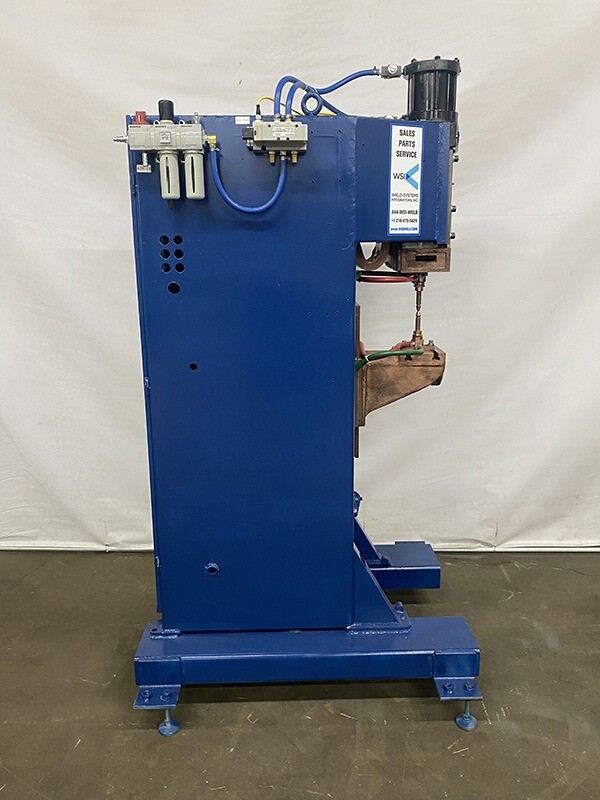

Used Precision Press Welder FOR SALE

Model: AVA 1 | 75 kVA | 20,000 Amps | 1,700 Force lbs.

Used 75 kVA Precision press welder FOR SALE at Weld Systems Integrators (WSI stock no.: 20635).

  • Manufacturer: Precision
  • WSI stock #: 20635
  • Category: Used press welder
  • Power @ 50% duty cycle:  75 kVA
  • Power supply:  Single-phase AC
  • Max. weld current: 20,000 amps
  • Max. weld force: 1,700 lbs.
  • Throat depth to center of platens: 8 in.
  • Controls: Miyachi AC Inverter – MIB-200A-00-00

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter “20635” on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20635
    Manufacturer name: Precision
    Type: Press welder
    Mfg. model #: AVA 1
    kVA: 75 kVA
    Voltage: 480 V
    Phase: Single-phase AC
    High secondary voltage: 3.7 V
    Low secondary voltage: 7.34 V
    Max. secondary current (5cy @ 95%): 20,000 amps
    Throat depth: 8″
    Platen size: 6″ x 6″
    Arm diameter: n / a
    Holder diameter: n / a
    Cylinder type: Standard
    Cylinder diameter: 5″
    Cylinder stroke: 3″
    Max. force (force @ 80 PSI): 1,700 lbs.
    Weld control: –
    Weld control model: –
    Disconnect size: n / a
    Tap switch / positions: 8 positions
    Initiation: Foot switch available
    General condition: Used
    Warranty: 3 months
    Availability: Immediate
