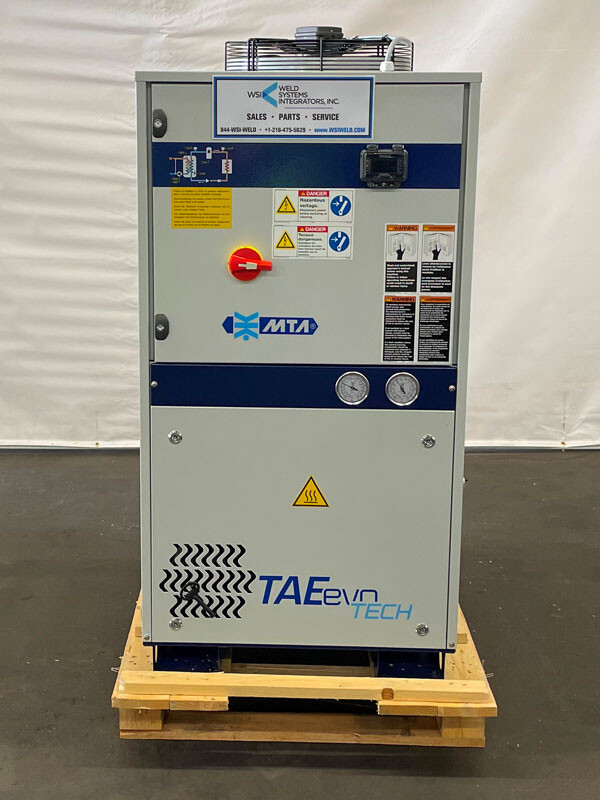

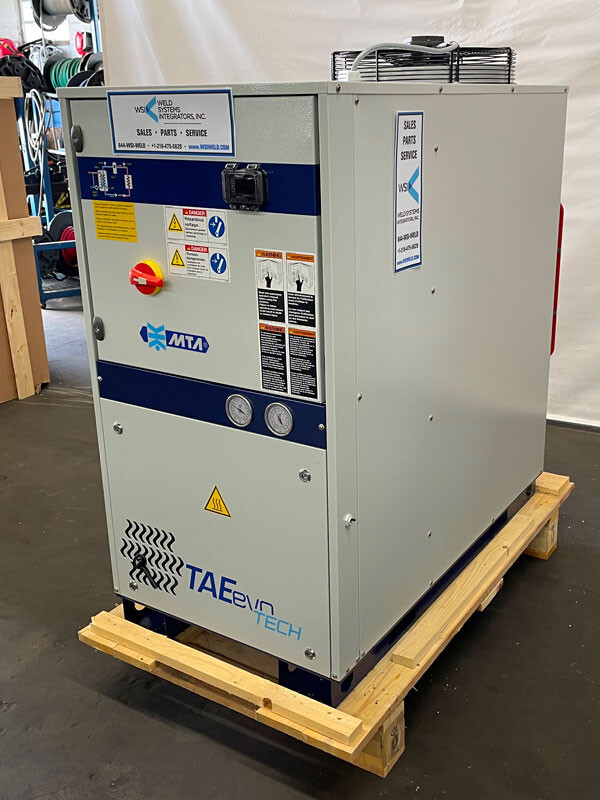

MTA TaeT 051 Industrial Process Water Chiller
(Replacing MTA TAEevo TECH 051)

4.5 Ton Capacity and 30.4 Gallon Reservoir

Model: MTA TaeT 051

MTA TaeT 051 water chillers (replacing MTA TAEevo TECH 051) FOR SALE at Weld Systems Integrators. This air-cooled liquid chiller features a cooling capacity of 4.5 tons, a 30.4-gallon reservoir capacity, and a broad range of configuration options and kit accessories. The MTA TaeT 051 chiller is perfect for industrial processing cooling where precise temperature control and absolute reliability, 24 hours a day, 365 days a year, are essential.

The MTA TaeT 051 chillers are a “TYPICALLY IN-STOCK” model at WSI, a distributor of MTA industrial chillers. We maintain an inventory at our Warrensville Heights, Ohio location. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for availability.

Current IN-STOCK Inventory: 0

EQUIPMENT QUOTE
Quote RequestSpecificationsBenefits / FeaturesVersions / Accessories / KitsDocumentation ( PDF )

Please submit the following form to request additional information.

* Stock / Serial #: Enter “MTA TaeT 051 Chiller” on the form below.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATIONS
    Manufacturer: MTA
    Model: TaeT 051 Chiller
    Full WSI part no.: TaeT 051 460/3 UL P5 NF LA
    Cooling capacity: 4.5 tons
    Capacity based on 45°F water outlet temp.; 10°F delta t @ 95°F ambient temperature
    BTU/hr: 54,000
    Electrical:  460 V / 3 Phase / 60 Hz / 14 FLAmps
    Pump: UL listed, P3 non-ferrous
    Reservoir capacity: 30.4 gallons
    Dimensions: 26″ W x 51.6″ D x 55.1″ H
    Weight: 765 lbs. installed
    UL listed: YES
    Version: Non-ferrous
    Closed expansion tank kit: Included
    Manual by-pass assembly: Included
    Dynamic setpoint: Included
    Refrigerant: R410A
    Connection size: 1″

    BENEFITS

    • The refrigerant R410A (ODP=0) ensures high performance thanks its outstanding heat conductivity properties
    • Innovative evaporator with immersed finned coil, characterized by low pressure drops and reduced sensitivity to impurities
    • The oversized hydraulic tank is standard and is able to compensate for the imbalances caused by sudden changes in load demand from the user
    • Wide operating limits (Minimum Twout = -10°C standard)
    • Hydralic circuit adaptable for atmospheric and pressurized hydraulic circuits (up to 6 barg)
    • Compact structure
    • Suitable for outdoor installation
    • Standard air condenser filters
    • Safety hydraulic by-pass
    • Wide range of accessories and kits for customized solutions
    • Easy installation, use and maintenance
    • Designed to operate 24/7 under the most demanding industrial conditions
    • Master/slave modularity from 2 to 5 units

    FEATURES

    • Galvanized carbon steel sheet structure hot painted with polyester powders
    • Refrigerant: R410A
    • Parametric microprocessor controller
    • High performance hermetic scroll compressors
    • Immersed finned coil evaporator with copper pipes and aluminum fins inside inertial tank
    • Finned condenser coil with copper pipes and large aluminum fins protected by filters
    • Electronic expansion valve (from mod.031)
    • HP/LP refrigerant manometers (from mod.031)
    • Integrated hydraulic circuit configuration made up from: single or double circulation pumps with medium or high available head pressure, inertial tank, safety valve, air vent valve
    • Water flow pressure manometer
    • Phase monitor
    • Crankcase heater compressor
    • Axial fans with optimized profile
    • Conductive level sensor
    • Electric power supply 400/3/50
    • SEPR HT and SEPR MT Tier2 compliant

    VERSIONS

    • Pressurized Non Ferrous hydraulic circuit (mod.020-802)
    • Close control regulation of the outlet water temprature through hot gas by-pass valve (hysteresis ± 0,5°C) (mod.020-351)
    • Low ambient temperature version up to -20 °C mod. (031- 1002)
    • Dual frequency version: power supply 400V/3/50 Hz – 460V/3/60 Hz (mod.020-161)
    • UL508A – CSA 22.2-14 version: power supply 460V/3/60Hz

    ACCESSORIES

    • Evaporator anti-freeze protection
    • Single or double circulation pumps (mod.201-1002) with medium or high available head pressure
    • Open circuit circulation pump with medium available head pressure (mod.031-1002)
    • Without pump version
    • Centrifugal fans (mod.031-161)
    • High efficiency EC brushless axial fans with high head pressure (max 150 Pa) and inverter control (mod. 201-802)
    • Electronic fans speed regulation (mod.031-802)
    • EC brushless fans (mod.902-1002)
    • Condensing coils protection with protective paint

    KITS

    • Manual filling kit for atmospheric hydraulic circuits
    • Automatic filling kit for pressurized hydraulic circuits
    • Glycol filling kit for pressurized circuits
    • BSP-NPT hydraulic fittings
    • Automatic hydraulic by-pass
    • Centrifugal fans
    • Electronic fans speed regulation kit
    • Remote ON/OFF
    • Remote display
    • Supervisor system RS485, XWEB300D EVO
    • Master/slave modularity kit from 2 to 5 units

    TaeT 051 031 / 051 Flyer – MTA TaeT 051 031 / 051 promotional flyer

    Electrical Schematic – MTA TaeT 051 031 / 061 electrical schematic

    General Arrangement – MTA TaeT 051 031 / 051 general arrangement
