Used McCreery Press Welder FOR SALE

Rebuilt Size 1 | 75 kVA Press Welder

WSI Stock / Serial #: 20691

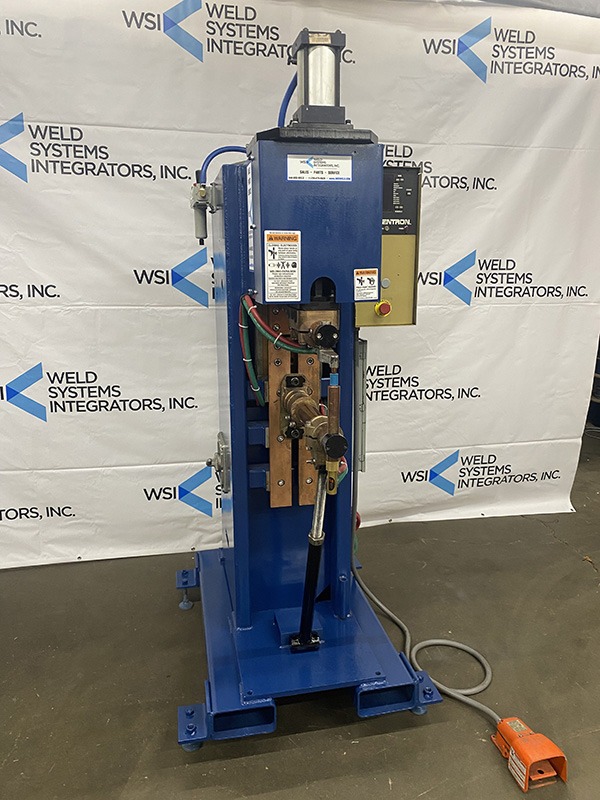

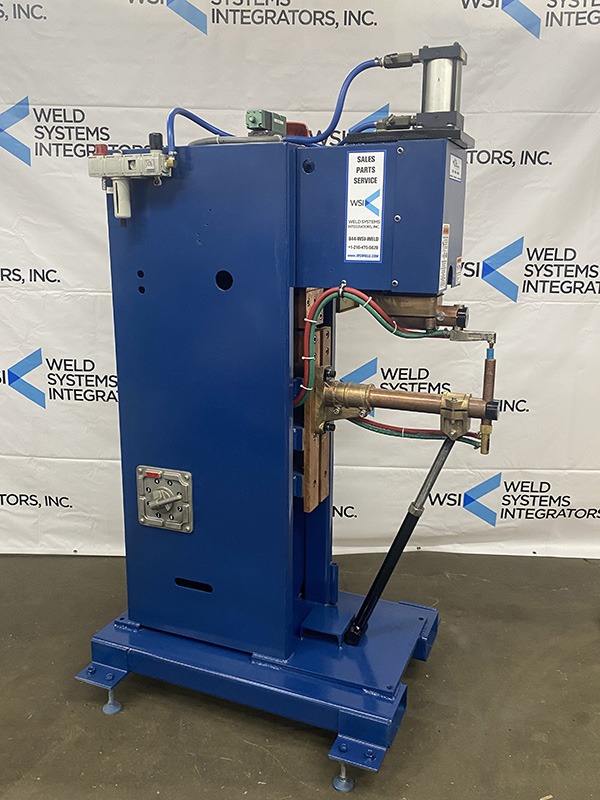

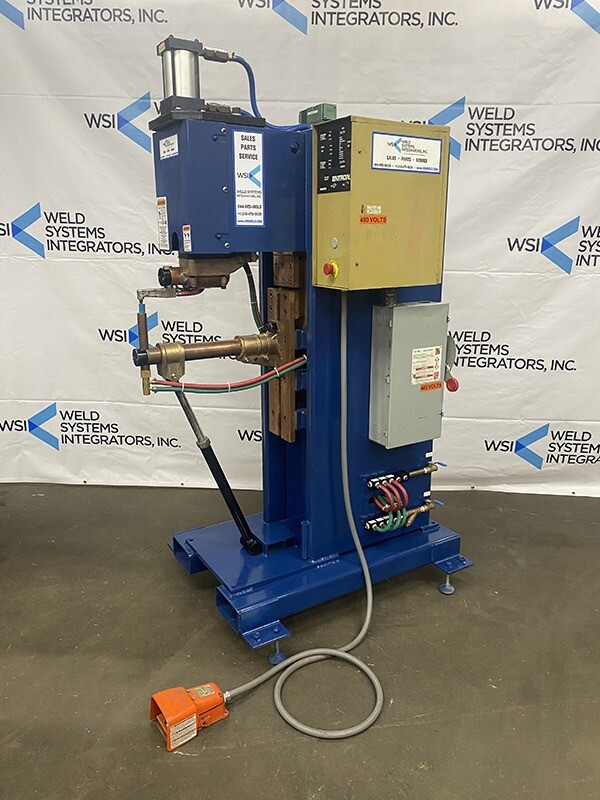

Used 75 kVA McCreery size 1 press welder FOR SALE at Weld Systems Integrators (WSI stock / serial #: 20691).

  • Mfg. model: A1-75-18-s
  • kVA: 75
  • Voltage: 480V / 1-Phase
  • Throat depth: 19″
  • Weld control: Entron EN1000-600E

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter “20691” on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20691
    Manufacturer name: McCreery
    Type: Size 1 Press Welder
    Mfg. model #: A1-75-18-s
    kVA: 75
    Voltage: 480
    Phase: 1
    High secondary voltage: 10
    Low secondary voltage: 5.7
    Max. secondary current (5cy @ 95%): 19.2 kA
    Throat depth: 19″
    Platen size: n / a
    Arm diameter: 2.5″
    Holder diameter: 1.25″
    Cylinder type: Air
    Cylinder diameter: 4″
    Cylinder stroke: 3″
    Max. force (force @ 80 PSI): 1098 lbs.
    Weld control: ENTRON
    Weld control model: EN1000-600E
    Disconnect size: 100 amp
    Tap switch / positions: Yes / 8-positions
    Initiation: Footswitch
    General condition: Used
    Warranty: 3 months
    Availability: Immediate
