Projection welding of fasteners to hot stamped boron steel, press-hardened steels, where an AlSi coating is present.

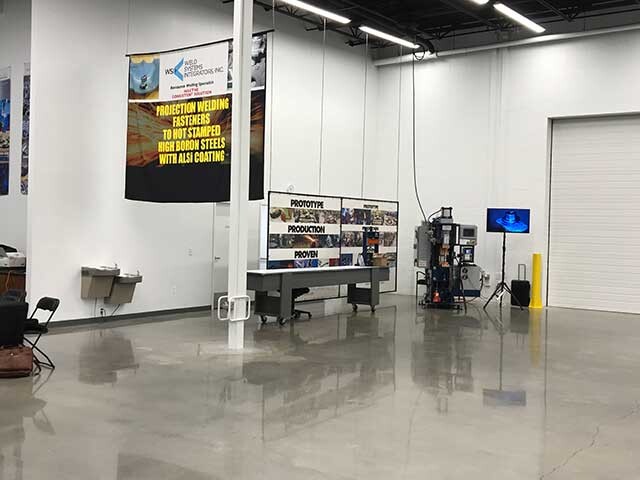

Weld Systems Integrators sponsored the 2019 Hot Stamping Experience and Tech Tour, hosted by Urgent Design & Manufacturing in Lapeer, Michigan on Tuesday, September 17th – powered by MetalForming magazine.

Hot Stamping Experience and Tech Tour | Weld Systems Integrators

We’d like to thank everyone who attended the event. It was a great opportunity to showcase our latest Capacitor Discharge technology and have insightful discussions with industry leaders.

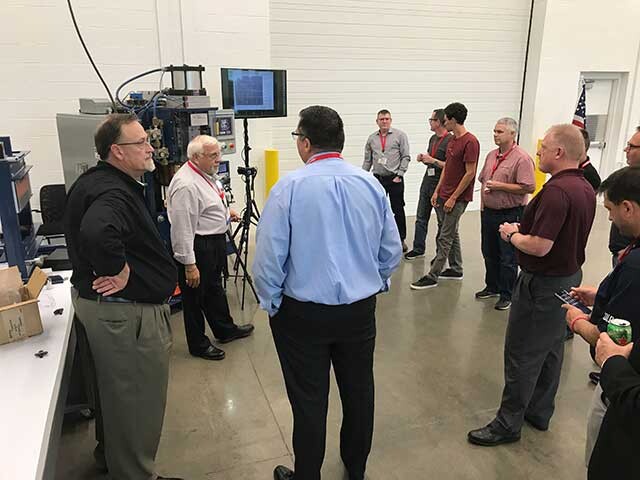

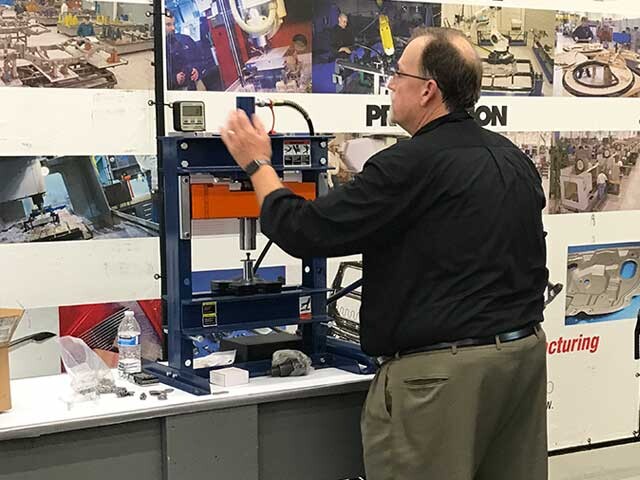

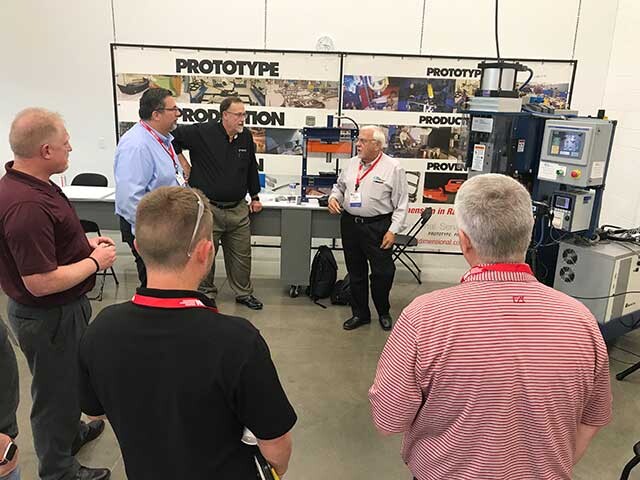

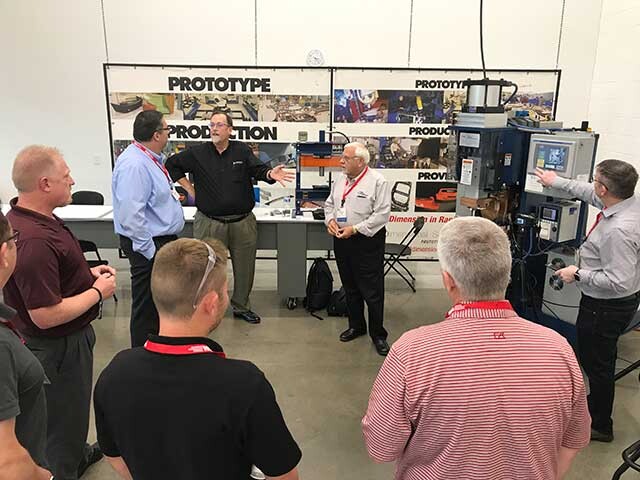

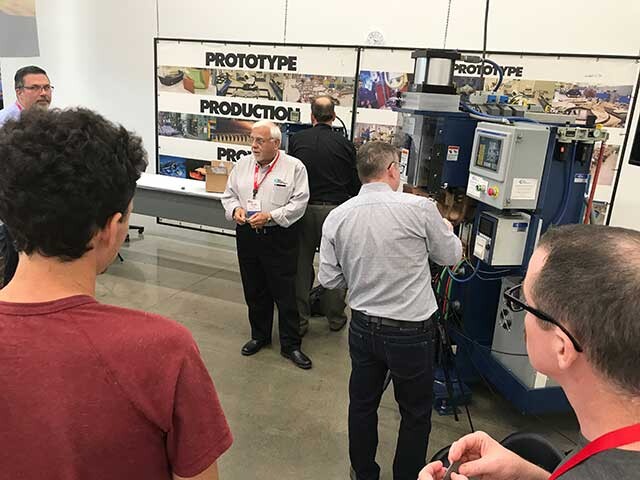

Presenters Allen M. Agin, WSI Midwest Regional Sales Manager and Bob Kollins, Senior Application Engineer – Technical Sales & Solution, discussed welding fasteners to hot stamped coated steels.

Projection welding of fasteners is widely used in automotive component assembly. Hot stamped high-boron AlSi coated steels is becoming more prevalent in the attempt to create components with increased tensile strength, which helps manufacturers meet regulatory requirements while maintaining 5-Star Safety Ratings. This presentation reviewed the manufacturing issues encountered when projection welding fasteners onto hot stamped/press hardened, AlSi-coated components, and examined the impact of using contact resistance, short weld times and high weld forces coupled with fast mechanical response. Welding process comparisons were also addressed.

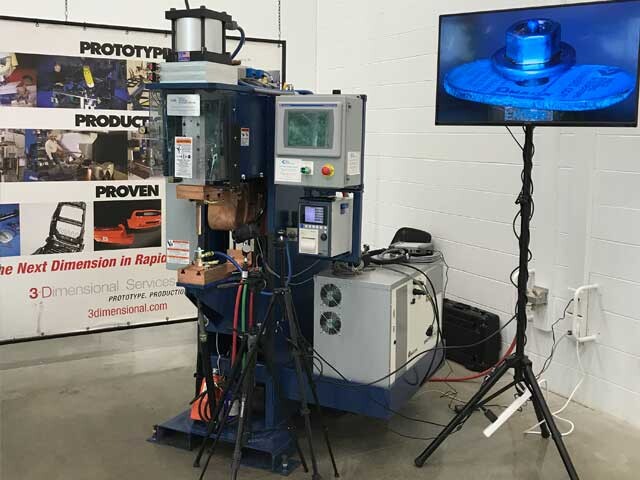

Capacitor Discharge Welding from Weld Systems Integrators

Fastener welding of weld nuts and studs can be difficult for a number of reason, including:

  • Fasteners are extremely soft compared to the base material
  • Hot-stamp materials develop AlSi coating in the furnace.
  • Resistive qualities of AlSi coating can be inconsistent across the part, and from batch to batch.
  • Longer weld times with lower weld currents (as typically called for in projection welding charts) makes it difficult to deliver enough heat to the base material, often vaporizing the projections without welding.
  • Consistent projection welding is difficult with most processes, and even with many Capacitor Discharge Welding machines, which may not be properly designed for the projection welding process.

As a result, fastener welding using Capacitor Discharge Welders from Weld Systems Integrators (WSI) may be your solution. WSI manufactured our first Capacitor Discharge Resistance Welder in 2007. That CD Welder is still in production today.

Capacitor Discharge Solution | Weld Systems Integrators
Learn More - Projection Welding of Fasteners | Weld Systems Integrators
Article - Projection Welding of Fasteners | Weld Systems Integrators
Video - Projection Welding of Fasteners | Weld Systems Integrators

Contact Weld Systems Integrators

CONTACT Weld Systems Integrators for more information on our Capacitor Discharge Welders. For immediate assistance, please feel free to give us a call at 844-WSI-WELD and ask about our IN-STOCK inventory at our Warrensville Heights, Ohio location.
