Used WSI Projection-Type Welder FOR SALE

WSI Stock / Serial #: 20630

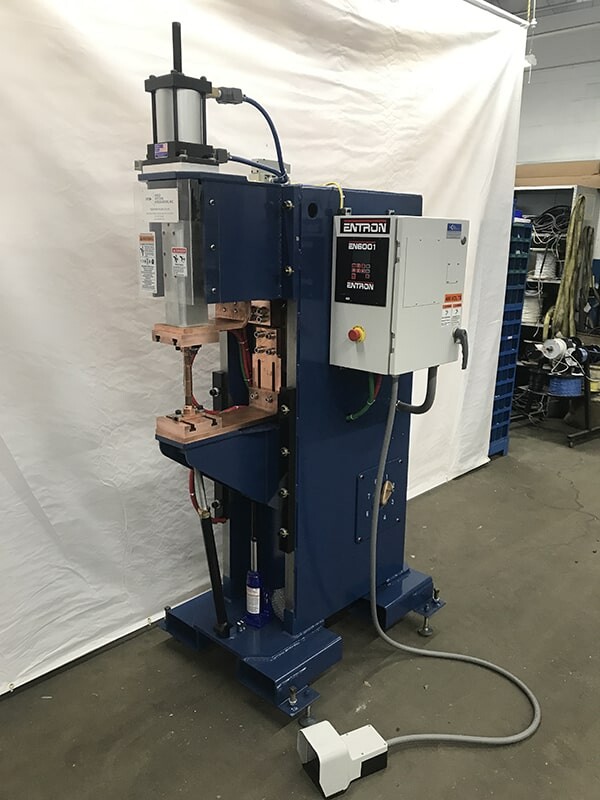

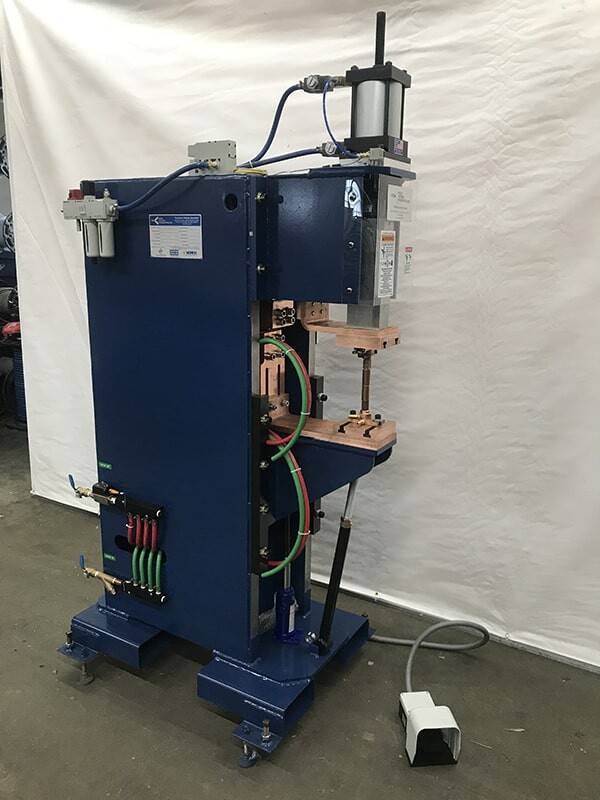

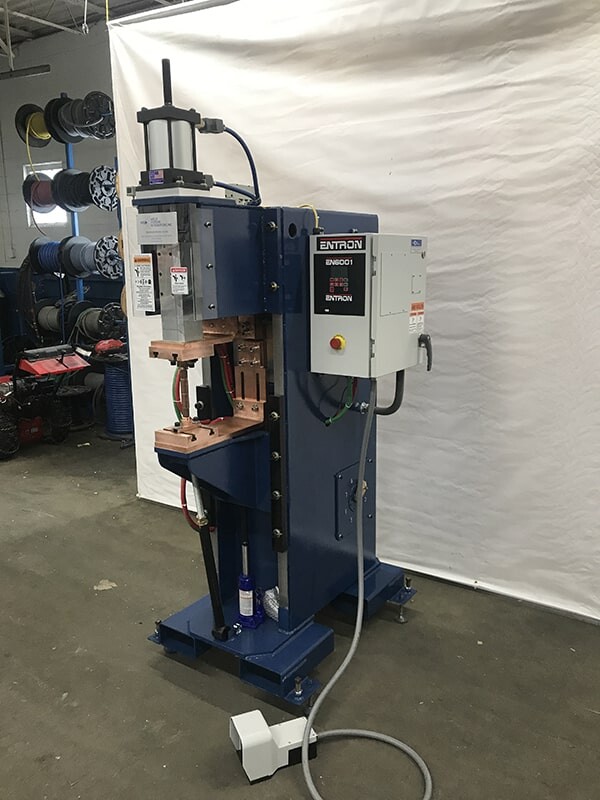

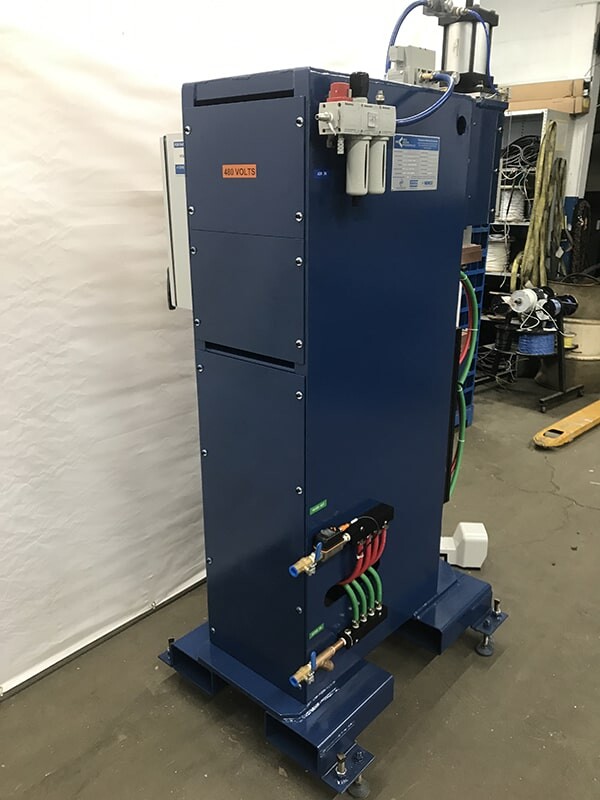

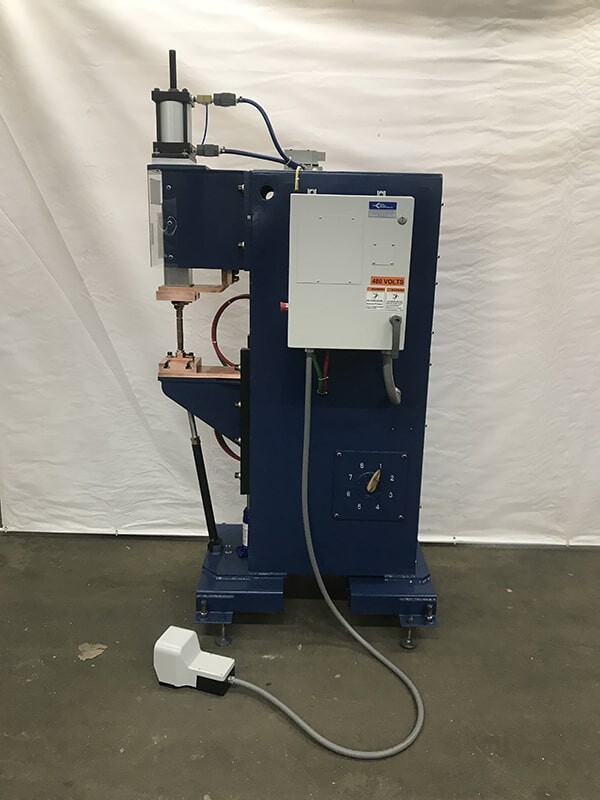

Used WSI projection-type welder FOR SALE at Weld Systems Integrators [ WSI stock / serial #: 20630 ]. This welder is nearly new! It has a new frame, new air and water system, new air cylinder, new ram and bearings, and a new copper secondary. Check out the pictures. The 75 KVA weld transformer is remanufactured. The welder looks and operates like new equipment! Unit is completely tested under full power. Carries a NEW equipment warranty!

RETURN TO ALL USED INVENTORY

QUOTE REQUEST!

Please submit the following form to request additional information.

If you have any questions on used equipment available from Weld Systems Integrators, please call 844-WSI-WELD or +1-216-475-5629 and ask to speak with a WSI Engineer.

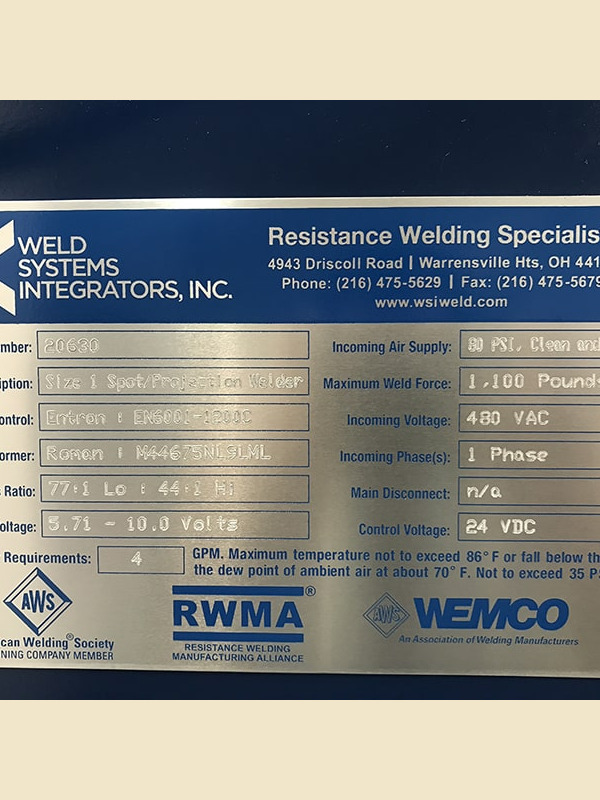

SPECIFICATIONS WSI Stock / Serial #: 20630
Manufacturer Name: WSI
Type: Projection Type Welder
Mfg. Model #: WSI-W1-12-AC-75-5X4-480/1
KVA: 75
Voltage 480
Phase: Single
Low Secondary Voltage: 5.7
High Secondary Voltage: 10
# of Tap Switch Positions: 8
Max. Secondary Current: 28,500
Throat Depth to Center of Platens: 12″
Platen Size: 6″ x 6″
Throat Depth to Center of Electrodes: n / a
Arm Diameter: n / a
Holder Diameter: Platen Mounted
Electrode Size: #2 MT
Cylinder Type: Air
Cylinder Diameter: 5″
Cylinder Stroke: 4″
Maximum Weld Force, #’s: 1,571
Weld Control Manufacturer: Entron
Weld Control Mfg. Model #: EN6001
Disconnect Size: n / a
Initiation: 2 Stage Foot Switch
General Condition: This welder is nearly new! It has a new frame, new air and water system, new air cylinder, new ram and bearings, and a new copper secondary. Check out the pictures. The 75 KVA weld transformer is remanufactured. The welder looks and operates like new equipment! Unit is completely tested under full power. Carries a NEW equipment warranty!
Additional Details: New two stage foot switch installed, LOTO devices installed on air and water inlets, and water flow switch and air pressure switch installed. Welder arms and holders available upon request.
Warranty: 1 Year
Availability: Immediate

Enter WSI Stock / Serial #: 20630 on the following quote request form.
