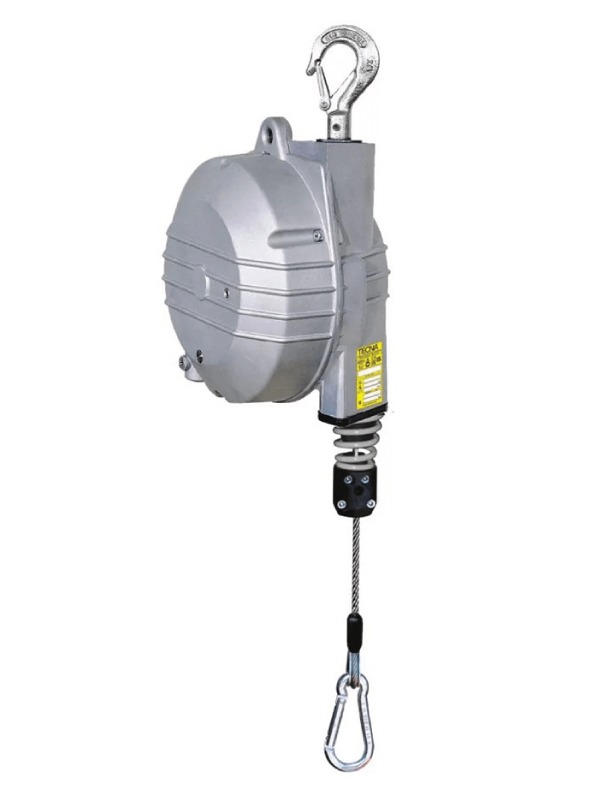

TECNA TE9358AX Explosion-Resistant Balancer
ATEX-Rated | Zero-Gravity Tool Balancer | 39.7 – 48.5 lbs. Capacity
Model: TECNA TE9358AX
The TECNA TE9358AX ATEX-Rated tool balancer is an explosion-resistant, ATEX-rated, zero-gravity tool balancer, suitable for use in environments having potentially explosive atmospheres for gas and dust. TECNA zero-gravity technology provides nearly weightless tool operation for 39.7 – 48.5 lbs. (18 – 22 kg) loads.
ATEX Gas Classification: II 2G Ex h IIB T6 Gb
ATEX Dust Classification: II 2D Ex h IIIC T85°C Db
- Stainless steel cable
- Double aluminum housing
- Capacity: 39.7 – 48.5 lbs. (18 – 22 kg)
- Stroke length: 79 in. (2000 mm)
$593.10
Current IN-STOCK Inventory: 0
* LARGE ORDERS: For orders of 10 balancers or more, please contact Weld Systems Integrators at 844-WSI-WELD, 216-475-5629 or EMAIL, and we will assist with your requirements. Large orders may be subject to additional discounts.
| SPECIFICATION | UNITS | TECNA TE9358AX |
|---|---|---|
| Lower capacity | lbs. | 39.7 |
| kg | 18 | |
| Upper capacity | lbs. | 48.5 |
| kg | 22 | |
| Stroke length | in. | 79 |
| mm | 2000 | |
| Cable / rope type | Stainless steel | |
| Body material | Double aluminum | |
| BALANCER VERSION | ||
| Friction brake (version .FAX) | Available | |
| OPTIONAL ACCESSORY | ||
| Rubber cover | Available for models 9320NY – 9323NY | |
| Conductive rotary suspension (7270000004) | not available | |
| Conductive locking / unlocking device (7190000004) | not available | |
TECNA balancers make tools nearly weightless, reducing operator fatigue and improving safety and ergonomics. As the tool is repositioned, the stainless steel cable extends and retracts smoothly from the aluminum housing, providing a full range of motion. Tension adjustment is easy and precise.
- Ribbed and sealed monobloc construction in aluminum alloy.
- Stainless steel rope.
- Adjustable capacity by means of a worm screw.
- Safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Upper rotary suspension with safety hook.
- Locking device to block the load at any height.
- Adjustable stroke limiting device.
- Taper drum rotating on ball bearings.
- Cable guide in antifriction material.
- Rotary upper hook with ball bearing.
- Inert spring drum assembly.
- Operating temperature between + 5°C to + 60°C.
Available for certain models, please contact WSI customer service at 844-WSI-WELD or 216-475-5629 for help selecting the right product for your application.

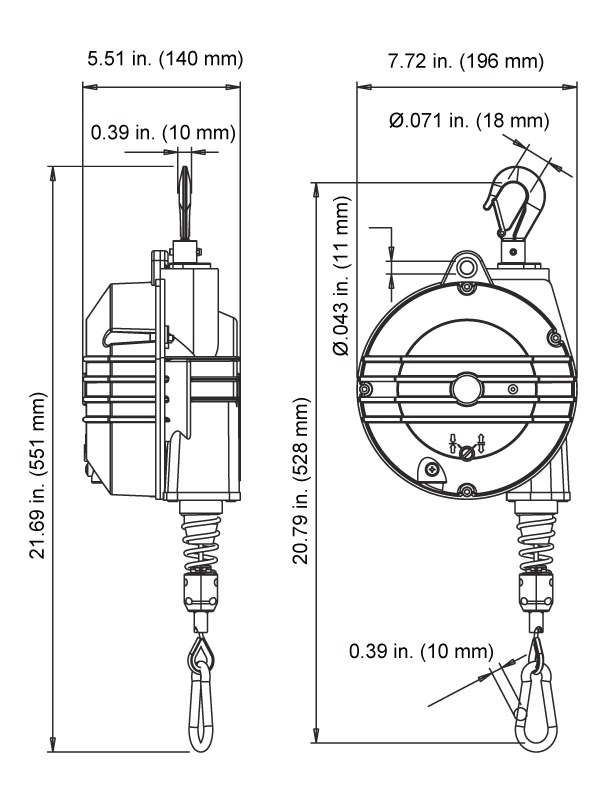

VERSION “.FAX” is equipped with a friction / brake which controls the rotation speed of the drum.
OPTIONAL ACCESSORY “RC” – Conductive rotary insulating device.
OPTIONAL ACCESSORY “BC” – Conductive locking-unlocking device with control from the floor.
