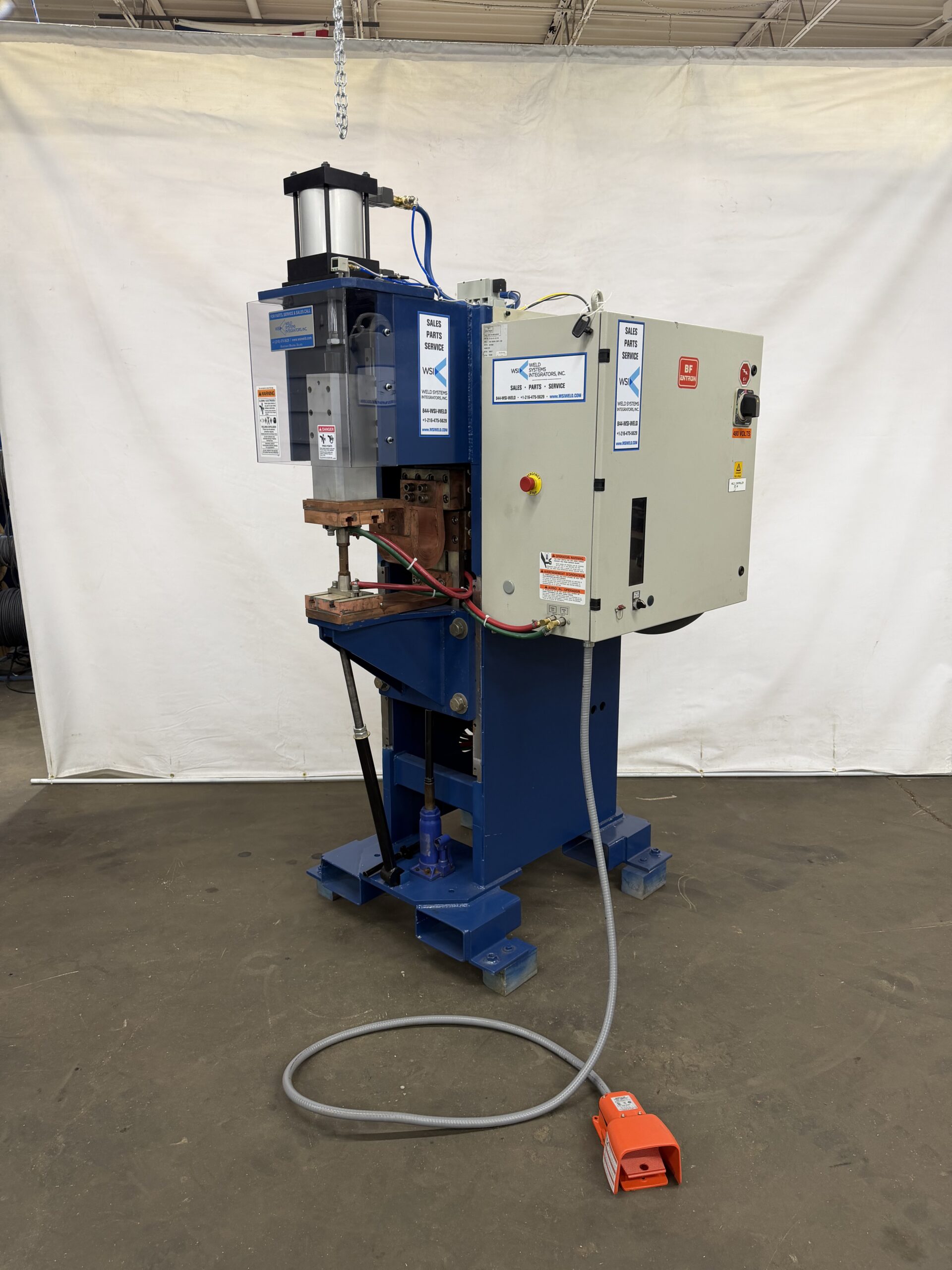

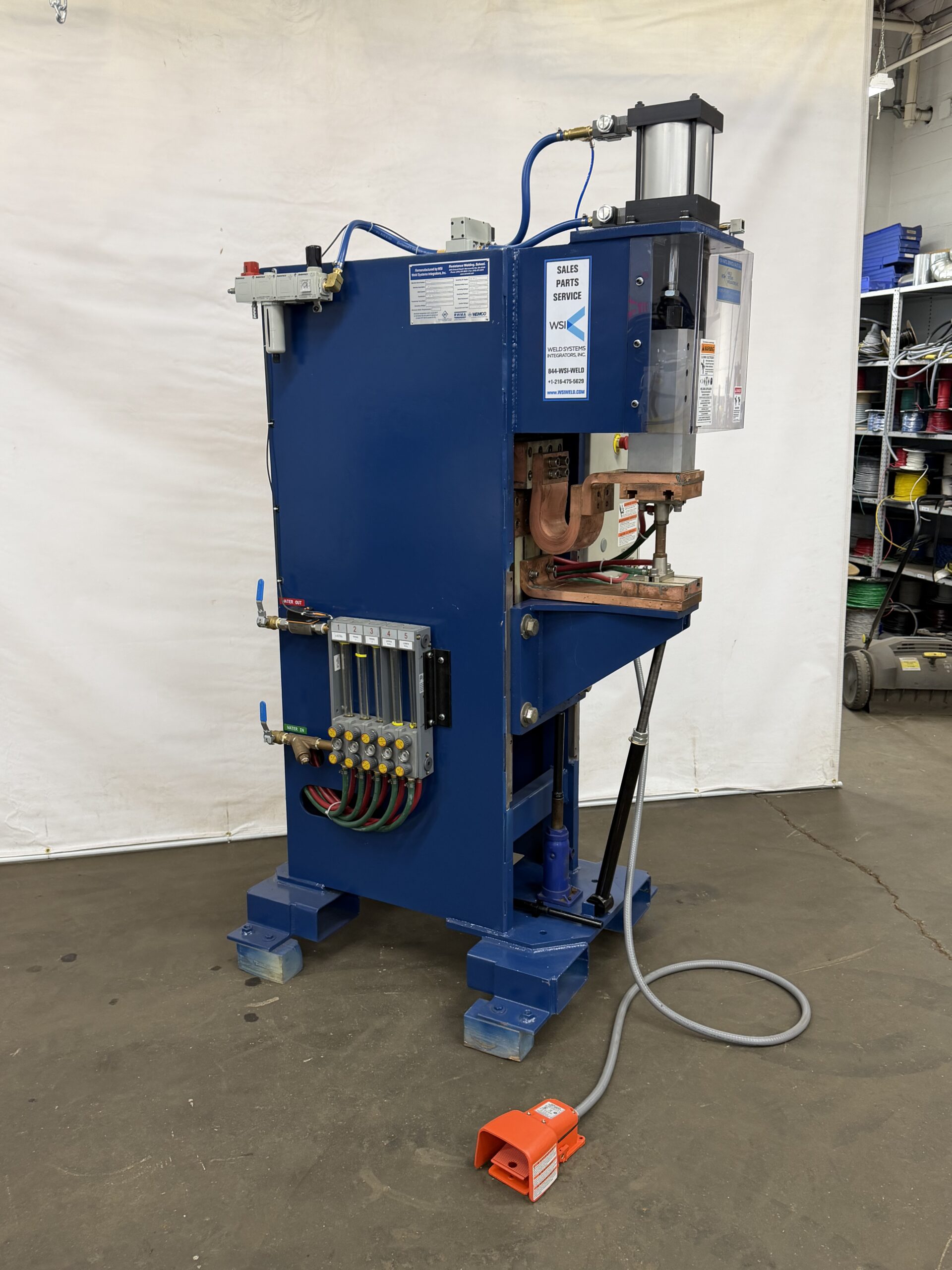

USED WSI Press Welder – Size 2 – 20869

250 kVA MFDC | 480V / 3-Phase | BF Entron IPAK

WSI Serial #: 20869

Used WSI size 2 press welder, original mfg. model #20036 IN-STOCK and FOR SALE – Weld Systems Integrators stock / serial #: 20869. This is a remanufactured welder in excellent condition, with fresh paint, cleaned copper, new complete air system with new cylinder and digital pressure switch, and new water system with digital flow switch.

  • Manufacturer: WSI – Serial No. 20036
  • Power @ 50% duty cycle:  250 kVA
  • Power supply:  MFDC
  • Max. weld force: 2240 lbs.
  • Max. platen throat depth: 12 in.
  • Controls: BF Entron IPAK 1000AW-250ET-1SW

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter WSI Serial #: 20869 on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or +1-216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20869
    Manufacturer Name: WSI
    Type: Size 2 Press Welder
    Mfg. Model #: WSI-20036
    kVA: 250 kVA MFDC
    Voltage 480V
    Phase: 3-Phase
    Low Secondary Voltage: 5.42
    High Secondary Voltage: 10.83
    # of Tap Switch Positions: n / a
    Max. Secondary Current: 80% @ 48 kA
    Throat Depth to Center of Platens: 12″
    Platen Size: 6″ x 6″
    Throat Depth to Center of Electrodes: n / a
    Arm Diameter: n / a
    Holder Diameter: n / a
    Cylinder Type: Air
    Cylinder Diameter: 6″
    Cylinder Stroke: 4″
    Maximum Weld Force, #’s: 2240 lbs.
    Weld Control Manufacturer: BF Entron
    Weld Control Mfg. Model #: IPAK 1000AW-250ET-1SW
    Disconnect Size: 250A
    Initiation: 2-stage foot switch
    General Condition: Fresh Paint, cleaned copper, New complete air system with New cylinder and Digital pressure switch, New water system with digital flow switch
    Warranty: 6 months
    Availability: Immediate
