Used Taylor Winfield Rocker Welder FOR SALE

50 kVA | 19″ Throat Depth | Entron En1000 Controls

WSI Stock / Serial #: 20871

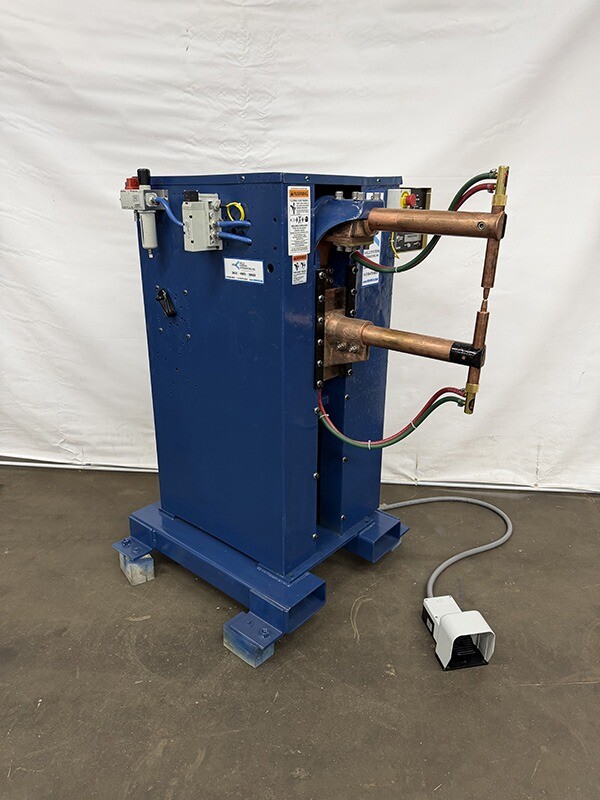

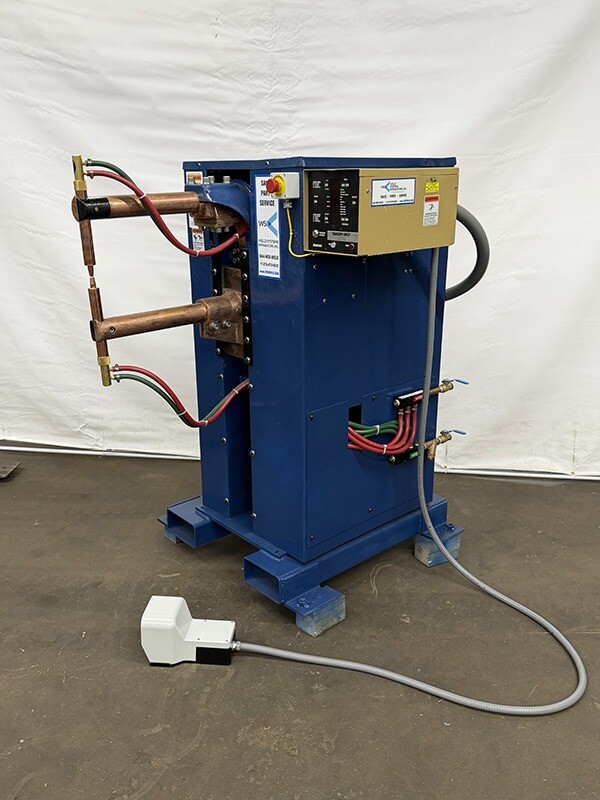

Used Taylor Winfield rocker welder, original mfg. model #71431 IN-STOCK and FOR SALE – Weld Systems Integrators stock / serial #: 20871. This is a rebuilt welder in excellent condition, with a new cylinder, flow controls, air and water systems, all-new hoses, fresh paint, cleaned copper, and new holders.

  • Manufacturer: Taylor Winfield – Serial No. 71431
  • Power @ 50% duty cycle:  50 kVA
  • Power supply:  Single-phase AC
  • Max. weld force: 1900 lbs.
  • Max. electrode throat depth: 19 in.
  • Controls: Entron En1000

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter “20871” on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20871
    Manufacturer Name: Taylor Winfield
    Type: Rocker Arm
    Mfg. Model #: 71431
    KVA: 50
    Voltage 480 V
    Low Secondary Voltage: 3.8
    High Secondary Voltage: 8.46
    # of Tap Switch Positions: 8 positions
    Max. Secondary Current: 10 kA
    Throat Depth to Center of Platens: n / a
    Platen Size: n / a
    Throat Depth to Center of Electrodes: 19″
    Arm Diameter: 2.5″
    Holder Diameter: 1.25″
    Cylinder Type: Air
    Cylinder Diameter: 5″
    Cylinder Stroke: 2″
    Maximum Weld Force, #’s: 1900
    Weld Control Manufacturer: Entron
    Weld Control Mfg. Model #: EN1000
    Disconnect Size: n / a
    Initiation: Foot pedal
    General Condition: New Cylinder with New Flow controls. New air and water system. All new hoses. Fresh Paint. All copper cleaned. New Holders.
    Warranty: 90 days
    Availability: Immediately
