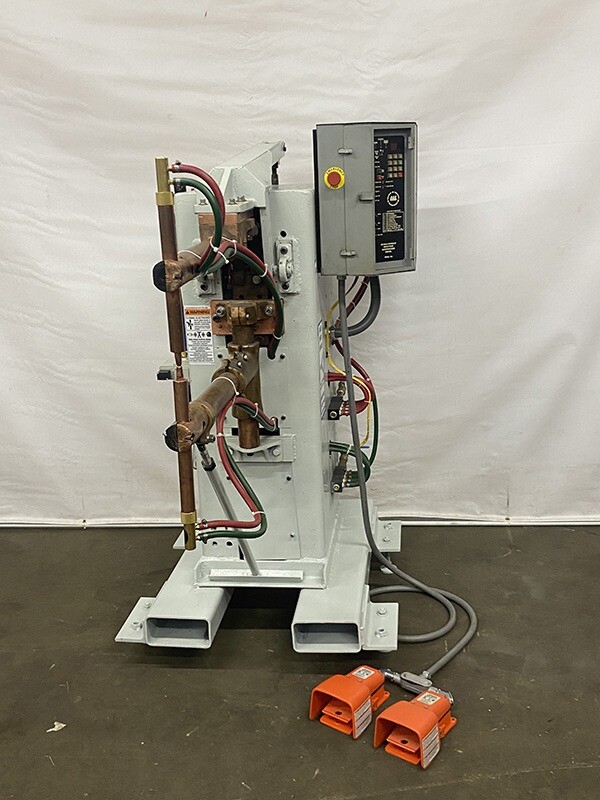

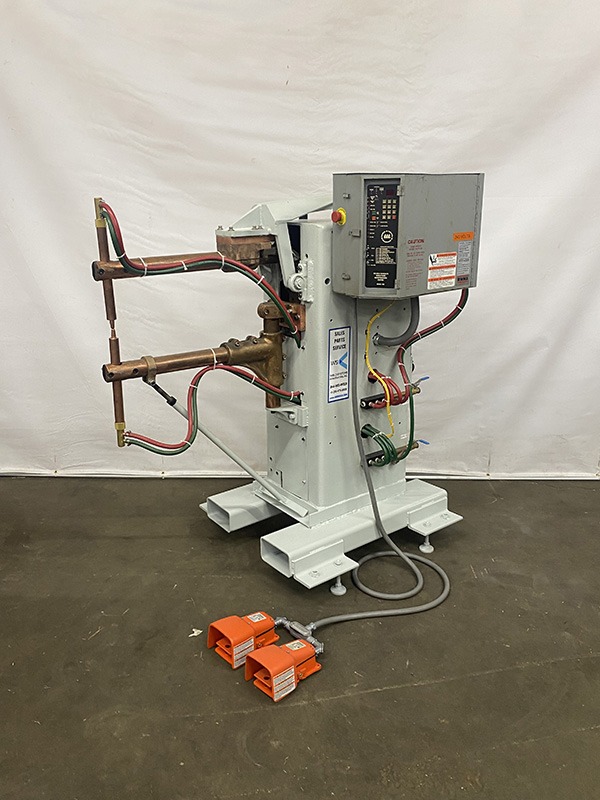

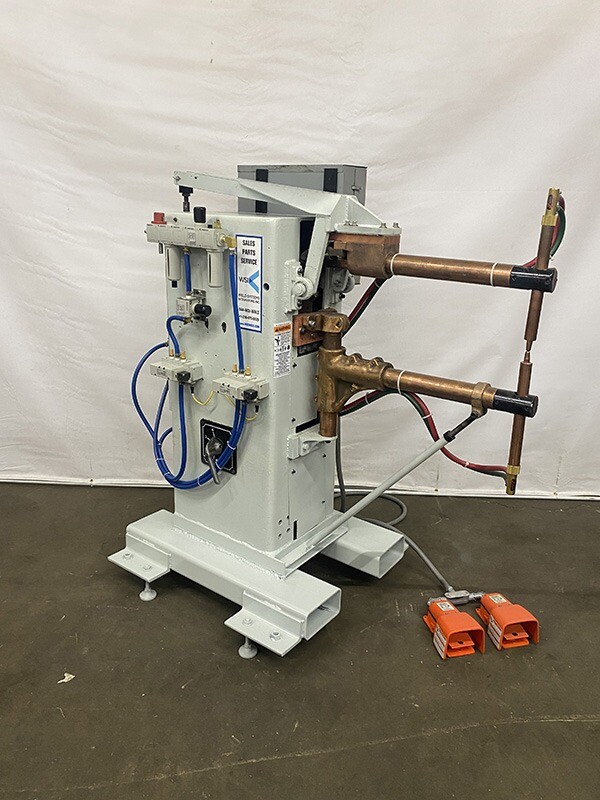

Used LORS Rocker Arm Welder FOR SALE

Model: 150AR | 50 kVA | 10,500 Amps | 1,150 Force lbs.

Used 50 kVA LORS rocker arm welder FOR SALE at Weld Systems Integrators (WSI stock / serial #: 20633).

  • Manufacturer: LORS
  • WSI stock #: 20633
  • Category: Used rocker welder
  • Power @ 50% duty cycle:  50 kVA
  • Power supply:  Single-phase AC
  • Max. weld current: 10,500 amps
  • Max. weld force: 1,150 lbs.
  • Throat depth to center of electrodes: 24 in.
  • Controls: Miyachi AC Inverter – MIB-200A-00-00

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter “20633” on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20633
    Manufacturer name: LORS
    Type: Rocker arm welder
    Mfg. model #: 150AR
    kVA: 50 kVA
    Voltage: 220 V
    Phase: Single-phase AC
    High secondary voltage: 2.5 V
    Low secondary voltage: 8.5 V
    Max. secondary current (5cy @ 95%): 10,500 amps
    Throat depth: 24″
    Platen size: n / a
    Arm diameter: 2.5″
    Holder diameter: 1.25″
    Cylinder type: 3 position
    Cylinder diameter: 3.5″
    Cylinder stroke: 4″
    Max. force (force @ 80 PSI): 1,150 lbs.
    Weld control: Intertron
    Weld control model: Model 108
    Disconnect size: n / a
    Tap switch / positions: 4 taps
    Initiation: Foot switch
    General condition: Used
    Warranty: 1 month
    Availability: Immediate
