Used Milco Projection Welder FOR SALE

Rebuilt 4-Post | 170 kVA | 48,000 Amps | 1,800 Force lbs.

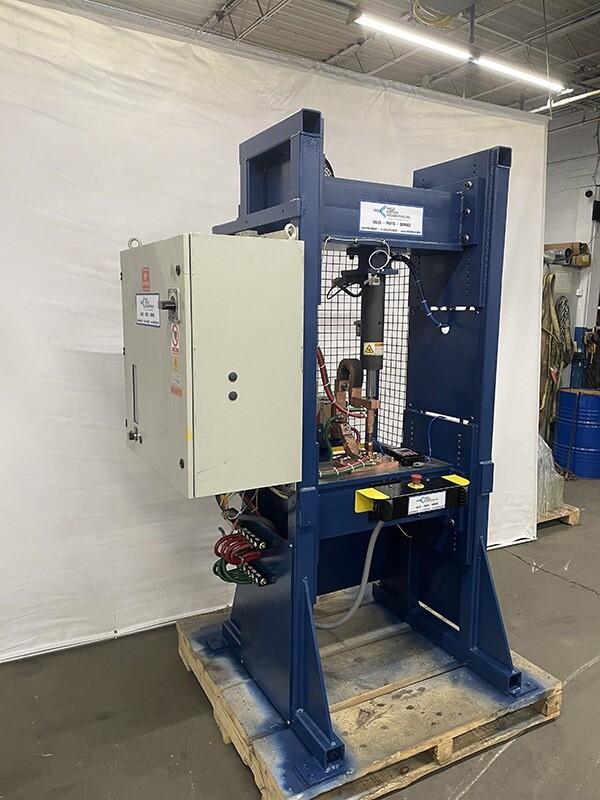

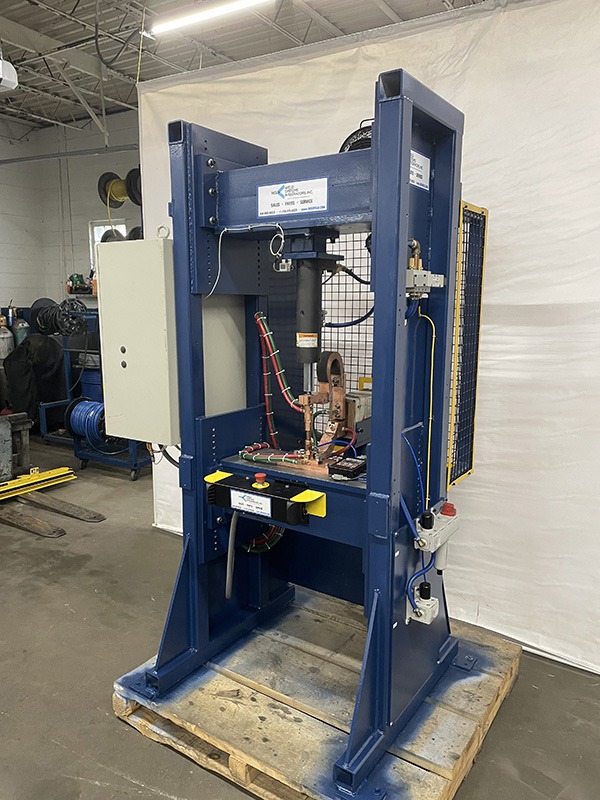

Used 170 kVA Milco 4-post projection welder FOR SALE at Weld Systems Integrators (WSI stock / serial #: 20794).

  • Manufacturer: Milco
  • WSI stock #: 20794
  • Category: Used projection welder
  • Power @ 50% duty cycle:  170 kVA
  • Power supply:  3-phase MFDC
  • Max. weld current: 48,000 amps
  • Max. weld force: 1,800 lbs.
  • Controls: ENTRON iPAK 10-69-51-02-00

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter “20794” on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20794
    Manufacturer name: Milco
    Type: 4-post projection welder
    Mfg. model #: n / a
    kVA: 170 kVA
    Voltage: 480 V
    Phase: 3-phase MFDC
    High secondary voltage: n / a
    Low secondary voltage: n / a
    Max. secondary current (5cy @ 95%): 48,000 amps
    Throat depth: n / a
    Platen size: n / a
    Arm diameter: n / a
    Holder diameter: n / a
    Cylinder type: Milco weld cylinder
    Cylinder diameter: n / a
    Cylinder stroke: 5″
    Max. force (force @ 80 PSI): 1,800 lbs.
    Weld control: ENTRON iPak
    Weld control model: 10-69-51-02-00
    Disconnect size: 200 amp
    Tap switch / positions: Hard-wired / 2 potential taps
    Initiation: Dual palm buttons
    General condition: Used
    Warranty: 90 days
    Availability: Immediate
