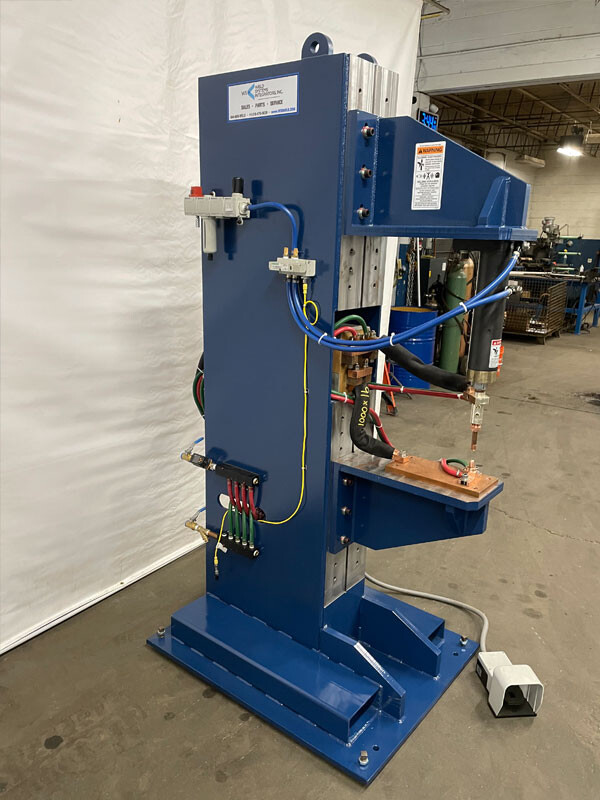

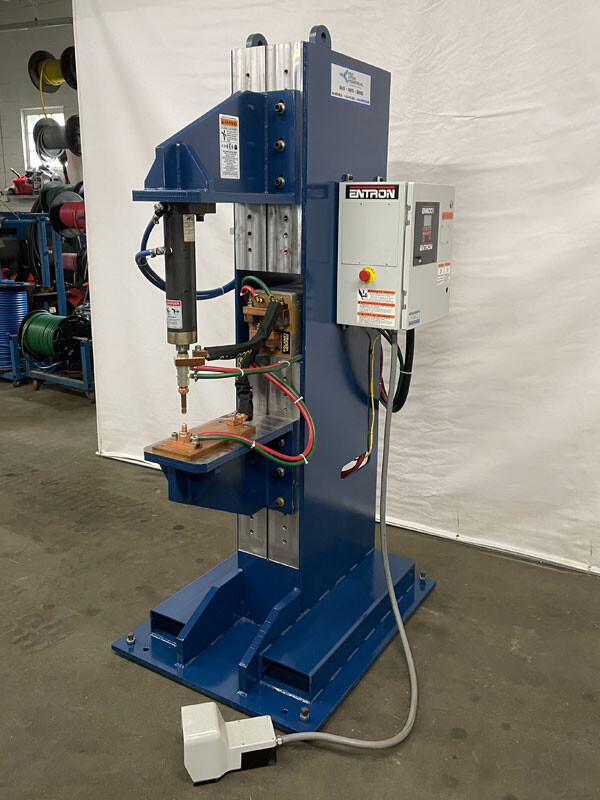

USED WSI Econopress Press Welder

85 kVA | 18,000 Amps | 2,150 Force lbs.

Used WSI Econopress press welder FOR SALE at Weld Systems Integrators [ WSI stock / serial #: 20770 ]. WSI Econopress press welders are ideal for welding applications that do not require the heavy-duty features of a standard press welder but still demand the same reliability at a lower cost.

  • Manufacturer: Weld Systems Integrators
  • WSI stock #: 20770
  • Category: Used press welder
  • Power @ 50% duty cycle:  85 kVA
  • Power supply:  Single-phase AC
  • Max. weld current: 18,000 amps
  • Max. weld force: 2,150 lbs.
  • Throat depth to center of electrodes: 18 in.
  • Controls: Customer select

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter WSI Serial #: 20770 on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20770
    Manufacturer Name: WSI
    Type: Econopress
    Mfg. Model #: –
    kVA: 85 kVA
    Voltage 440 V
    Phase: Single-phase AC
    Low Secondary Voltage: 7.09 V
    High Secondary Voltage: 5.78 V
    # of Tap Switch Positions: End mount 3
    Max. Secondary Current: 18
    Throat Depth to Center of Platens: n / a
    Platen Size: n / a
    Throat Depth to Center of Electrodes: 18″
    Arm Diameter: n / a
    Holder Diameter: n / a
    Electrode Size: –
    Cylinder Type: Milco Weld Gun
    Cylinder Diameter: n / a
    Cylinder Stroke: 4″
    Maximum Weld Force: 2,150 lbs.
    Weld Control Manufacturer: Entron
    Weld Control Mfg. Model #: EN6001
    Disconnect Size: n / a
    Initiation: Dual-stage footswitch
