Used Taylor Winfield Rocker Arm Welder FOR SALE

30 kVA | 10,500 Amps | 700 Force lbs.

WSI Stock / Serial #: 20595

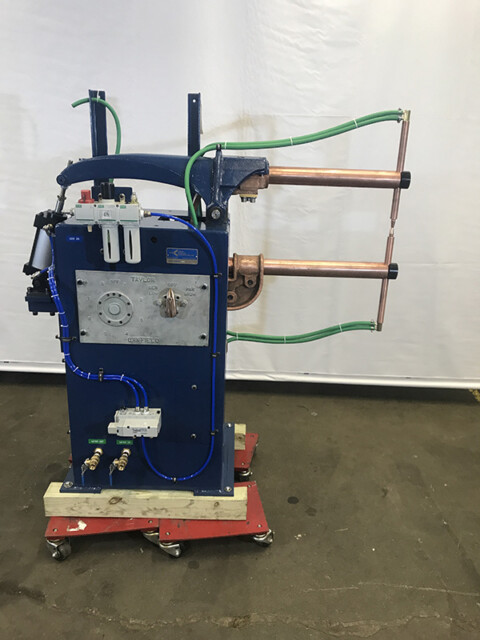

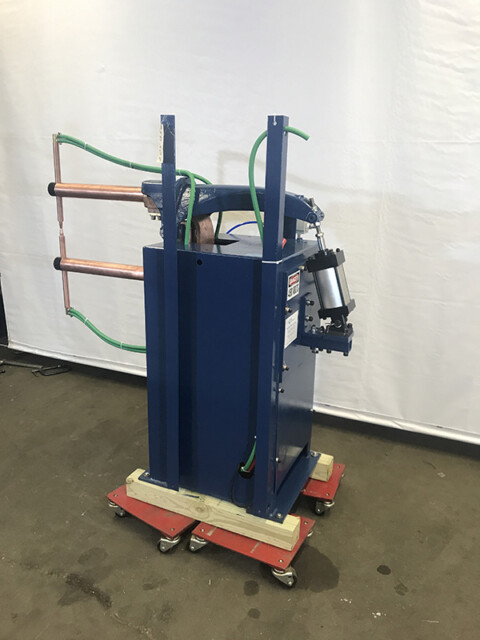

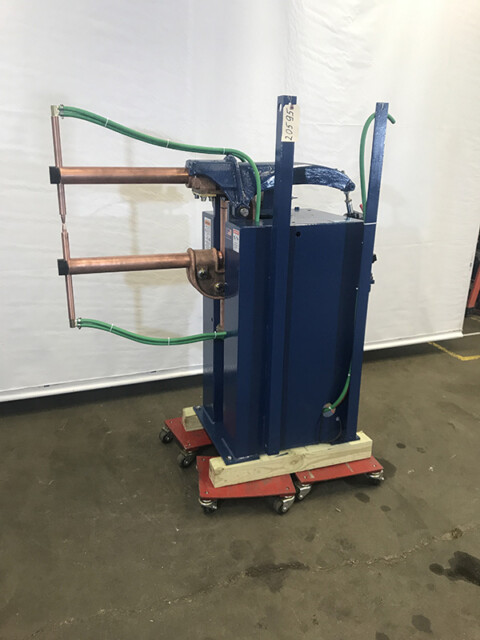

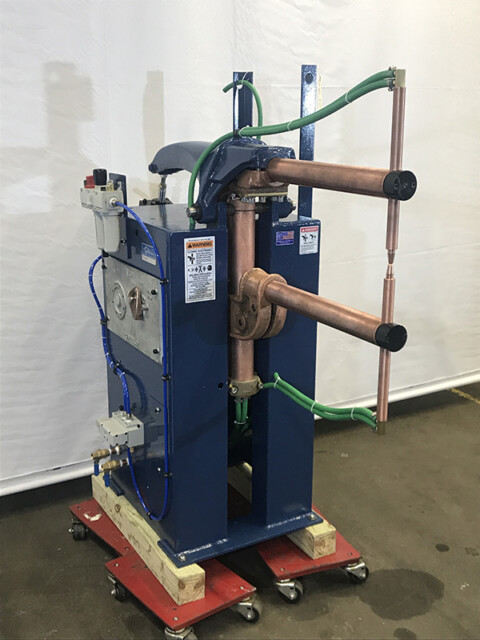

Used Taylor Winfield rocker arm welder, original mfg. model #54840 IN-STOCK and FOR SALE – Weld Systems Integrators stock / serial #: 20595. Immediate availability upon customer weld control selection. Features include – 440 VAC, single-phase, 30 KVA, 4″ diameter weld cylinder, 4″ stroke,  24″ throat depth to the center of electrodes, and 2 top switch positions, Series / Parallel.

This is a remanufactured welder, in excellent condition. New filter, regulator, lubricator, air valve, water system, all air and water hosing, and electrode holders. Completely tested.

  • Manufacturer: Taylor Winfield
  • WSI stock #: 20595
  • Category: Used rocker welder
  • Power @ 50% duty cycle:  30 kVA
  • Power supply:  Single-phase AC
  • Max. weld current: 10,500 amps
  • Max. weld force: 700 lbs.
  • Throat depth to center of electrodes: 24 in.
  • Controls: Customer select

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.EQUIPMENT QUOTE

Quote RequestSpecifications

Please submit the following form to request additional information.

Enter “20595” on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20595
    Manufacturer Name: Taylor Winfield
    Type: Rocker Arm
    Mfg. Model #: 54840
    kVA: 30 kVA
    Voltage 440 V
    Phase: Single-phase AC
    Low Secondary Voltage: 2.62 V
    High Secondary Voltage: 6.28 V
    # of Tap Switch Positions: 2 positions, Series / Parallel
    Max. Secondary Current: 10,5oo amps
    Throat Depth to Center of Platens: n / a
    Platen Size: n / a
    Throat Depth to Center of Electrodes: 24″
    Arm Diameter: 2-1/2″
    Holder Diameter: 1″
    Electrode Size: 2 MT
    Cylinder Type: Air
    Cylinder Diameter: 4″
    Cylinder Stroke: 4″
    Maximum Weld Force: 700 lbs.
    Weld Control Manufacturer: Customer Selection
    Weld Control Mfg. Model #: Customer Selection
    Disconnect Size: Customer Selection
    Initiation: Customer Selection
    General Condition: Remanufactured Welder, in excellent condition. New filter, regulator, lubricator, air valve, water system, all air and water hosing, electrode holders. Completely tested.
    Additional Details:
    Warranty: 1 year
    Availability: Immediate upon customer weld control selection
