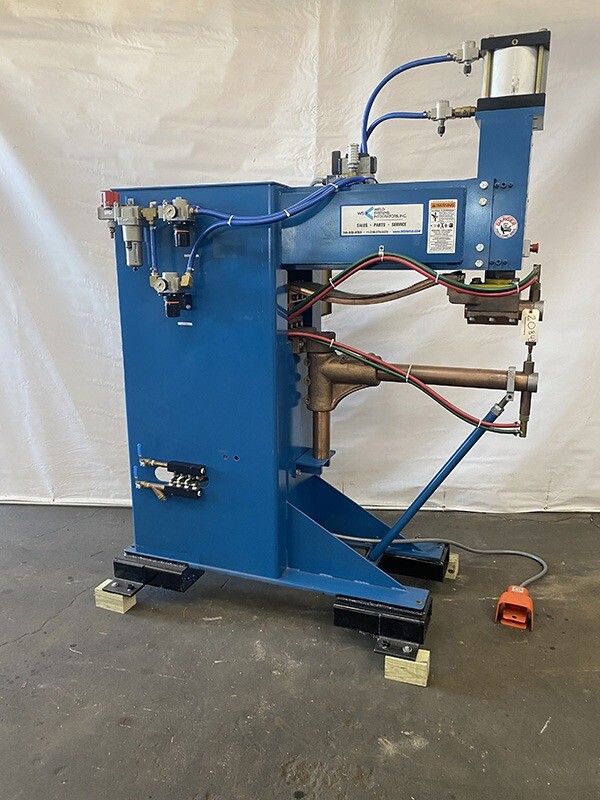

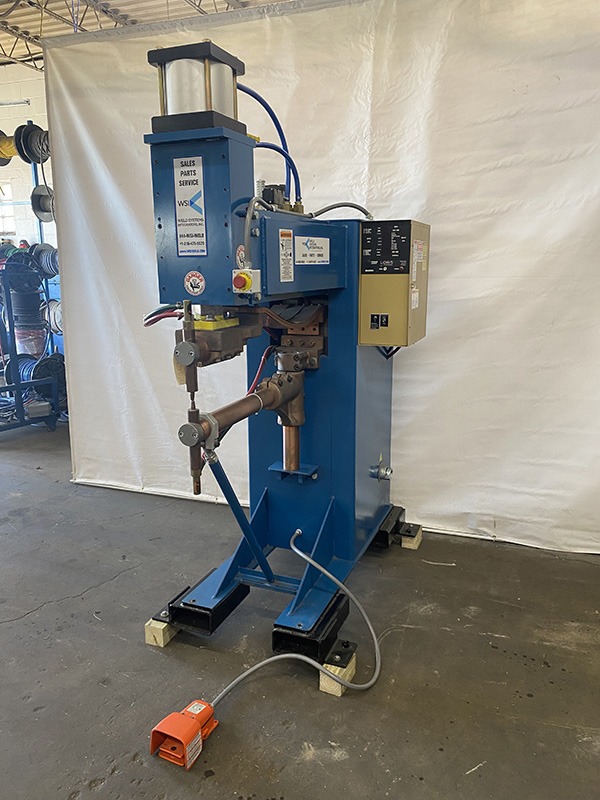

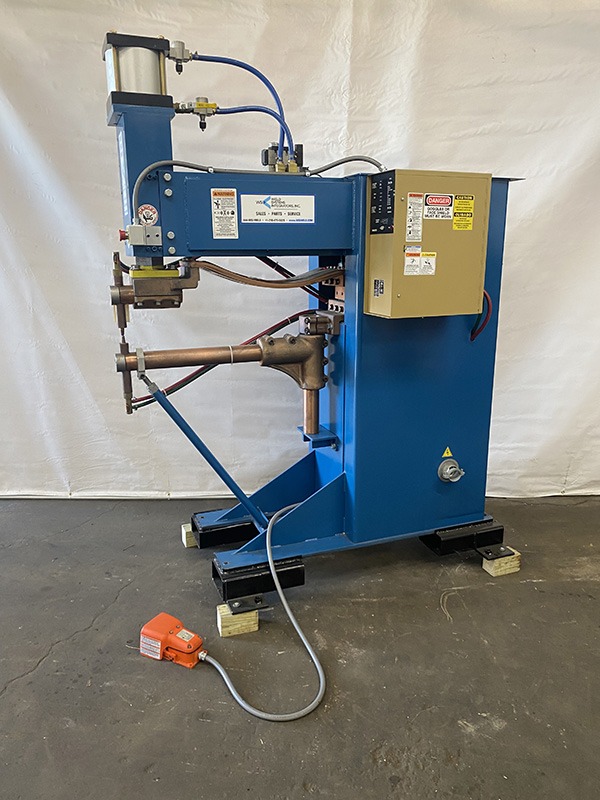

Used LORS Press Welder FOR SALE

Model: 1100AP-DV | 100 kVA Press Welder | WSI Stock No.: 20843

Used 100 kVA LORS press welder model 1100AP-DV FOR SALE at Weld Systems Integrators (WSI stock no.: 20843).

  • Manufacturer: LORS
  • WSI stock #: 20843
  • Category: Used press welder
  • Power @ 50% duty cycle:  100 kVA
  • Power supply:  Single-phase AC
  • Max. weld current: 19,000 amps
  • Max. weld force: 4,000 lbs.
  • Throat depth to center of platens: 22 in.
  • Controls: ENTRON EN1000

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter “20843” on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATIONS WSI Stock / Serial #: 20843
    Manufacturer name: LORS
    Type: Press welder
    Mfg. model #: 1100AP-DV
    kVA: 100 kVA
    Voltage: 440 V
    Phase: Single-phase AC
    High secondary voltage: 10.47 V
    Low secondary voltage: 6.28 V
    Max. secondary current (5cy @ 95%): 19,000 amps
    Throat depth: 22″
    Platen size: n / a
    Arm diameter: 3″
    Holder diameter: 1.5″
    Cylinder type: Air
    Cylinder diameter: 8″
    Cylinder stroke: 4″
    Max. force (force @ 80 PSI): 4,000 lbs.
    Weld control: ENTRON
    Weld control model: EN1000
    Disconnect size: n / a
    Tap switch / positions: 6 positions
    Initiation: Foot switch
    General condition: Used
    Warranty: 3 months
    Availability: Immediate
