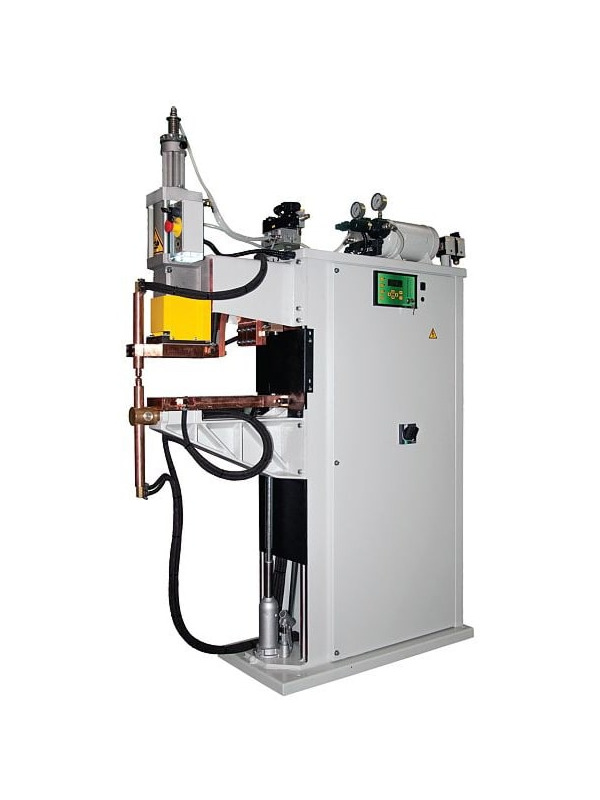

TECNA TE6122NX – MFDC Press Spot / Projection Welder
90 kVA | Air-Operated | MFDC / Inverter
TECNA TE6122NX – US Configured 480V
TECNA TE6122NX MFDC press-type spot / projection welder IN-STOCK and FOR SALE at Weld Systems Integrators. The TE6122NX is a 90 kVA, MFDC welder with WSI-TECNA US configured 480 volts (the most common power system used in US industrial plants).
- Model: TECNA TE6122NX
- Power @ 50% duty cycle: 90 kVA
- Initiation: Air-operated
- Power supply: MFDC / Inverter
- Max. throat depth: 23.23 in.
- Weld current: 32,000 amps
- Max. weld force: 1,654 lbs.
Current IN-STOCK Inventory: 1
* TYPICALLY IN-STOCK model at WSI, a stocking master distributor of TECNA industrial resistance welders. We maintain an inventory at our Warrensville Heights, Ohio, location. Please reach out to our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for current availability.
Welder ParametersFull SpecificationsFeaturesDocumentationQuote Request
| MODEL | TE6122NX | |
|---|---|---|
| Welder style: | Press welder | |
| Work type: | Production | |
| Welding type: | Spot, nut, stud or fastener welding | |
| Power @ 50% duty cycle: | 90 kVA | |
| Power supply: | MFDC / inverter | |
| Max. weld current: | 32,000 amps | |
| Max. weld force: | 1,654 lbs. | |
| Electrode throat depth: | Fixed, 23″ – spot welding Fixed, 16″ – nut, stud or fastener welding |
|
| Standard controls: | TE700 | |
| WELDABLE MATERIAL THICKNESS | > Cold rolled steel: | 12-gauge and thinner |
| > Galvanized steel: | 12-gauge and thinner | |
| > Stainless steel: | 16-gauge and thinner | |
| > Aluminum: | 14-gauge and thinner | |
| Power requirements: | 480 VAC, 100 amps | |
| Min. compressed air supply: | 80 PSI, clean and dry air | |
| Water cooling required: | YES, not included | |
| ACCESSORIES | > Cooling: | MTA TaeT Mini M10 |
| > Safety: | UNITROL Soft-Touch Safety System | |
| > Arms: | Drop arm assembly | |
| MODELS | UNITS | 6121NX | 6122NX | 6128NX |
|---|---|---|---|---|
| Press welder type | Spot / projection | Spot / projection | Spot / projection | |
| Standard weld control | TE700 | TE700 | TE700 | |
| Power @ 25% duty cycle | kVA | 142 | 142 | 253 |
| Power @ 50% duty cycle | kVA | 90 | 90 | 160 |
| Short circuit current | A | 32,000 | 32,000 | 42,000 |
| Thermal current @ 100% | kA | 6.1 | 6.1 | 8.8 |
| Secondary voltage | V | 9.9 | 9.9 | 12.3 |
| Supply voltage (@60Hz)* | V | 480 | 480 | 480 |
| Primary cables Ø (up to 30m) | mm² | 35 | 35 | 70 |
| Delayed fuses @ 440VAC | A | 100 | 100 | 150 |
| Arm spacing range (gap) | in. (mm) | 6.9-18.7 (175-475) | 6.9-18.7 (175-475) | 6.9-18.7 (175-475) |
| Throat depth – to electrode holders | in. (mm) | 15.35 (390) | 21.26 (540) | 21.26 (540) |
| Throat depth – to tooling platens | in. (mm) | 10.32 (262) | 16.22 (412) | 16.22 (412) |
| # slots and spacing | # / in. (mm) | 2 / 2.48 (63) | 2 / 2.48 (63) | 2 / 2.48 (63) |
| Max. electrode force – standard @ 87 psi (6 bar) | lbs. (daN) | 1619.2 (736) | 1619.2 (736) | 1619.2 (736) |
| Max. electrode force – high-force option 8235 @ 87 psi (6 bar) | lbs. (daN) | 2732.4 (1242) | 2732.4 (1242) | 2732.4 (1242) |
| Working stroke | in. (mm) | 3.94 (100) | 3.94 (100) | 3.94 (100) |
| Adjustable retraction stroke (standard) | in. (mm) | 0.00-3.15 (0-80) | 0.00-3.15 (0-80) | 0.00-3.15 (0-80) |
| Compressed air supply | psi (bar) | 94.3 (6.5) | 94.3 (6.5) | 94.3 (6.5) |
| Air Consumption per 1000 Spots @ 94 psi (650kP / 6.5 bar) | ||||
| Standard welder – 20mm stroke | SCF (N/m³) | 162 (4.6) | 162 (4.6) | 162 (4.6) |
| Standard welder – max. stroke | SCF (N/m³) | 544 (15.4) | 544 (15.4) | 544 (15.4) |
| Option 6135 – 20mm stroke | SCF (N/m³) | 332 (9.4) | 332 (9.4) | 332 (9.4) |
| Option 6135 – max. stroke | SCF (N/m³) | 766 (21.7) | 766 (21.7) | 766 (21.7) |
| Air hose inside Ø | in. (mm) | 0.63 (16) | 0.63 (16) | 0.63 (16) |
| Water cooling @ 36 psi (250 kP / 2.5 bar) | gpm (lpm) | 2.64 (10) | 2.64 (10) | 3.17 (12) |
| Net weight | lbs. (kg) | 1078 (490) | 1100 (500) | 1210 (550) |
| Arm diameter | in. (mm) | 2.36 (60) | 2.36 (60) | 2.36 (60) |
| Electrode holder diameter | in. (mm) | 1.26 (32) | 1.26 (32) | 1.26 (32) |
| Electrode taper | 2MT/5RW | 2MT/5RW | 2MT/5RW | 2MT/5RW |
| Dimensions (LxWxH) | in. (mm) | 48.9 x 17.3 x 76.3 (1243 x 440 x 1938) | 52.9 x 17.3 x 76.3 (1343 x 440 x 1938) | 52.9 x 17.3 x 76.3 (1343 x 440 x 1938) |
| Max. power | kVA | 230 | 295 | 350 |
| Maximum welding current on aluminum | kA | 36 | 40 | 37 |
| Maximum welding current on steel | kA | 32 | 35 | 32 |
| Tooling platen dimensions | in. (mm) | 4.72/5.51 (120/140) | 4.72/5.51 (120/140) | 4.72/5.51 (120/140) |
| Aerial noise produced | dB(A) | 71 | 73 | 75 |
| Measure Condition | ||||
| Working stroke | in. (mm) | 1.97 (50) | 1.97 (50) | 1.97 (50) |
| Welding time | Cycles | 13 | 11 | 22 |
| Welding current | kA | 29 | 34 | 30 |
| Working rating | Welds / min | 6 | 6 | 6 |
- Medium-frequency welders are designed to obtain high-quality welding.
- The modular design of the mechanical structure, arms, brackets, and cylinders.
- Cylinder with chrome-plated stem for heavy-duty work and long life; adjustable anti-rotation device.
- Lubrication-free pneumatic components to eliminate oil mist and protect the environment.
- Adjustable double-stroke cylinder with key control. Alternatively, it may be managed by a pneumatic pedal.
- Electrodes descend without pressure for both maintenance and set-up.
- Built-in compressed air filter unit and tank. Compressed air disconnection device.
- Water-cooled transformer, plates, electrode-holders, and electrodes; transformer with epoxy resin-coated windings.
- Two-stage electric foot control for clamping and welding pieces only if correctly positioned.
- Pre-setting for additional double-stage electric foot switch connection for the direct recalling of a different welding program.
- Arranged for all models: two-hand safety control with timer and removable key selector, assuring the best safety. The two-hand control device is standard on projection models only (it is available upon request on spot welder models).
- Emergency push-button to stop the machine immediately.
- Protection with automatic circuit breaker.
- Flow-switch which stops the machine if the cooling water does not flow and valve for blocking the water-cooling flow when the machine is off.
- (optional) USB port for data storage.
- Pneumatic circuit equipped with low force squeeze (optional), particularly suitable when projection welding and when spot welding delicate parts.
- Position sensor (optional) which allows measuring the initial thickness of the material to be welded and verifying the presence and the dimensional accuracy of the materials to be welded before welding. It also allows measuring the penetration of the electrodes at the end of the welding process. It is also possible to stop the current flow once the set penetration value has been achieved.
TECNA 6122NX, 6123NX, 6128NX Installation Manual
* Download the TECNA 6122NX, 6123NX, 6128NX installation manual ( PDF )
Please submit the following form to request additional information.
Enter “TECNA-TE6122NX” on the following quote request form.
