TECNA 9321AX Retractor Balancer FOR SALE

Explosion-Resistant (ATEX-Rated) | Capacity 4.4 – 8.8 lbs.

Model: TECNA 9321AX

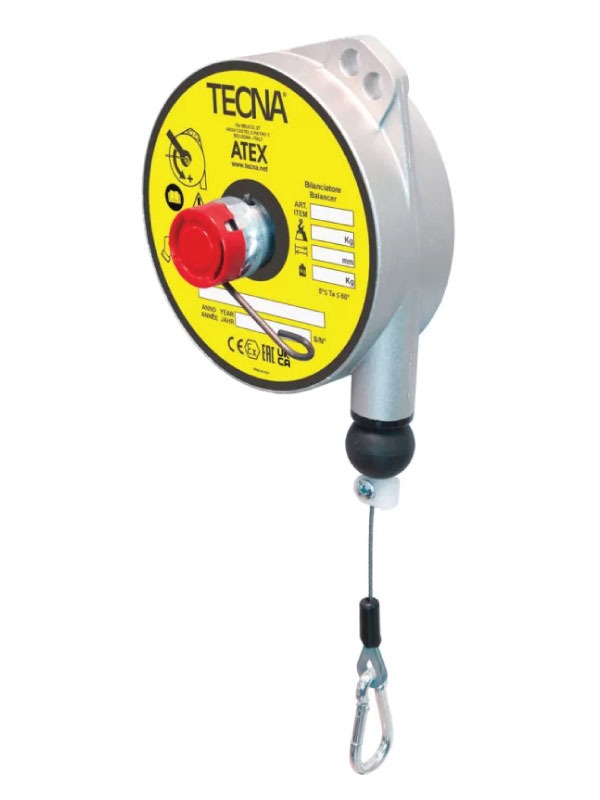

TECNA 9321AX explosion-resistant (ATEX-rated) retractor tool balancer FOR SALE at Weld Systems Integrators. For installation in hazardous conditions, including explosive areas containing flammable gases or combustible dust. ATEX certified to Ex II 2G c T6 and Ex II 2D c T85°C. Provides nearly weightless tool operation for 4.4 – 8.8 lbs. (2.0 – 4.0 kg) loads.

Balancer Designation: 9321AX
  • Stainless steel cable
  • Aluminum housing
  • Capacity: 4.4 – 8.8 lbs. (2.0 – 4.0 kg)
  • Stroke length: 79 in. (2000 mm)
  • Optional Features [ F  |  RC  |  BC ] NOT INCLUDED * See below for details

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

Current IN-STOCK Inventory: 0

EQUIPMENT QUOTE
Quote RequestSpecificationsStandard FeaturesOptional Features

Please submit the following form to request additional information.

Enter “TECNA 9321AX” on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATION UNITS TECNA 9321AX
    Lower capacity lbs. 4.4
    kg 2.0
    Upper capacity lbs. 8.8
    kg 4.0
    Stroke length in. 79
    mm 2000
    Cable type Stainless steel
    Body material Aluminum
    Explosion-resistant (ATEX-rated) YES
    Friction brake [ option “.F” ] Not included
    Insulated rotating hook [ option RC ] Not included
    Floor-operated load lock [ option BC ] Not included

    TECNA balancers make tools nearly weightless, reducing operator fatigue and improving safety and ergonomics. As the tool is repositioned the stainless steel cable extends and retracts smoothly from the aluminum housing, providing a full range of motion. Tension adjustment is easy and precise.

    • Rugged construction, cast aluminum body
    • Stainless steel rope
    • Adjustable capacity
    • Auxiliary safety suspension
    • Adjustable stroke limiting device
    • Cable guide in antifriction material
    • Inert spring drum assembly
    • Polyamides thimble
    • Operating temperature between + 5°C to + 60°C

    * Features and specifications may vary and are subject to change without notice

    Available for certain models, please contact a customer service representative for help selecting the right product for your application.

    OPTION “.F” version is equipped with a friction / brake which controls the rotation speed of the drum.

    Balancers models 9346LAX – 9350AX are equipped with a stop device allowing to stop the load in intermediate positions of the stroke, about every 3.94 in. (100 mm). The stop device can be activated and deactivated at the operator’s choice.

    TECNA recommends OPTIONAL ACCESSORY “RC” – Rotary and insulating device for ESD zero-gravity balancers.

    OPTIONAL ACCESSORY “BC” – Locking-unlocking device with control from the floor.
