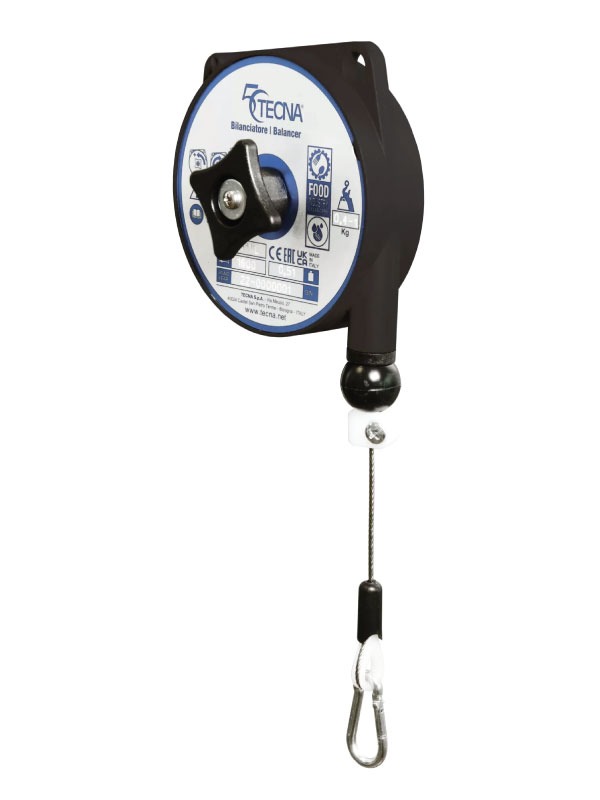

TECNA 9310IL Food Industry Retractor Balancer

Balancers for Environments with Moisture and Chemicals| Capacity 0.44 – 1.1 lbs.

Model: TECNA 9310IL

The TECNA 9310IL food industry balancer is a NEW product line designed for food and beverage, meat processing, dairy, bakery and confectionery, and industrial washing and sanitizing applications. The 9310IL features an aluminum housing with hard anodizing treatment, NSF-H1 certified food grade grease, rust-proof stainless steel wire rope with a capacity of 0.4 – 1.1 lbs. (0.2 – 0.5 kg), and a stroke length of 62.99 in. (1600 mm).

Balancer Designation: 9310IL
  • Rust-proof and stainless steel exterior materials
  • Aluminum housing with high-strength Rilsan treatment
  • Food grade rope guide, shock absorber and wire cap
  • Stainless steel wire rope
  • NSF-H1 Certified Grade Grease
  • Optional features [ .B1 ] NOT INCLUDED
    * See below for details

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

Current IN-STOCK Inventory: 0

EQUIPMENT QUOTE
Quote RequestSpecificationsStandard FeaturesOptional Features

Please submit the following form to request additional information.

Enter “TECNA 9310IL” on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    SPECIFICATION UNITS TECNA 9310IL
    Lower capacity lbs. 0.44
    kg 0.2
    Upper capacity lbs. 1.1
    kg 0.5
    Stroke length in. 63
    mm 1600
    Cable type Stainless steel
    Body material Aluminum with high-strength Rilsan treatment
    NSF-H1 Certified Grade Grease Included
    Locking-unlocking device with control from the floor [ option “.B1” ] Not included

    TECNA balancers make tools nearly weightless, reducing operator fatigue and improving safety and ergonomics. As the tool is repositioned the stainless steel cable extends and retracts smoothly from the aluminum housing, providing a full range of motion. Tension adjustment is easy and precise.

    • Cast aluminum housing with special hard anodization, resistant to oxidation and chemical aggression
    • NSF-H1 certified Food Grade grease
    • Rust-proof stainless steel materials on all external parts
    • Rugged construction, cast aluminum housing with hard anodization, resistant to oxidation and chemical aggression
    • Stainless steel rope
    • Adjustable capacity
    • Auxiliary safety suspension
    • Adjustable stroke limiting device
    • Cable guide in antifriction material
    • Inert spring drum assembly
    • Polyamides thimble

    * Features and specifications may vary and are subject to change without notice

    Available for certain models, please contact a customer service representative for help selecting the right product for your application.

    Balancers models 9346LIL – 9350IL are equipped with a stop device allowing to stop the load in intermediate positions of the stroke, about every 3.94 in. (100 mm). The stop device can be activated and deactivated at the operator’s choice.

    OPTIONAL ACCESSORY “B1” – Locking-unlocking device with control from the floor (chain and handle in stainless steel). Available for balancer models:

    • 9502RL – 9509RL
    • 9520RL – 9525RL
