H-Type Push-Out Tester FOR SALE

Measure the push-out strength of projection-welded nuts, studs, and other welded fasteners

Model: WSI H-Type Push-Out Tester

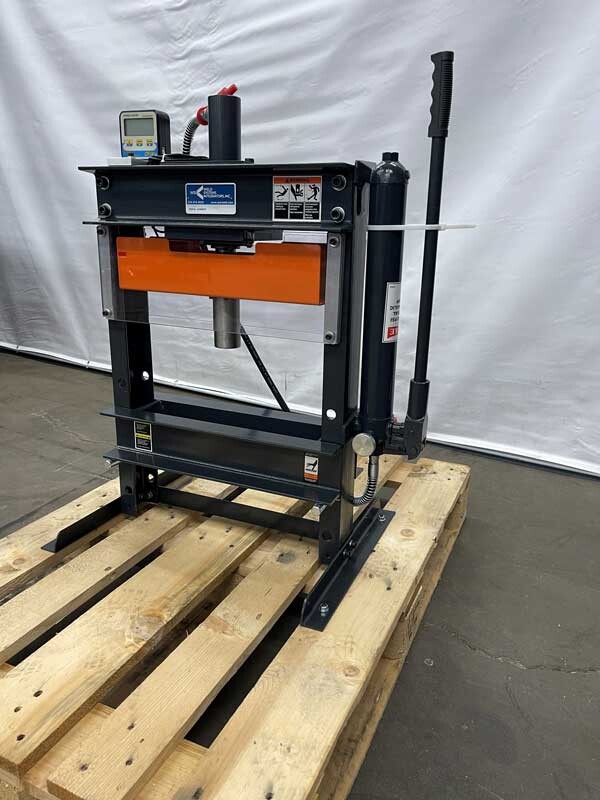

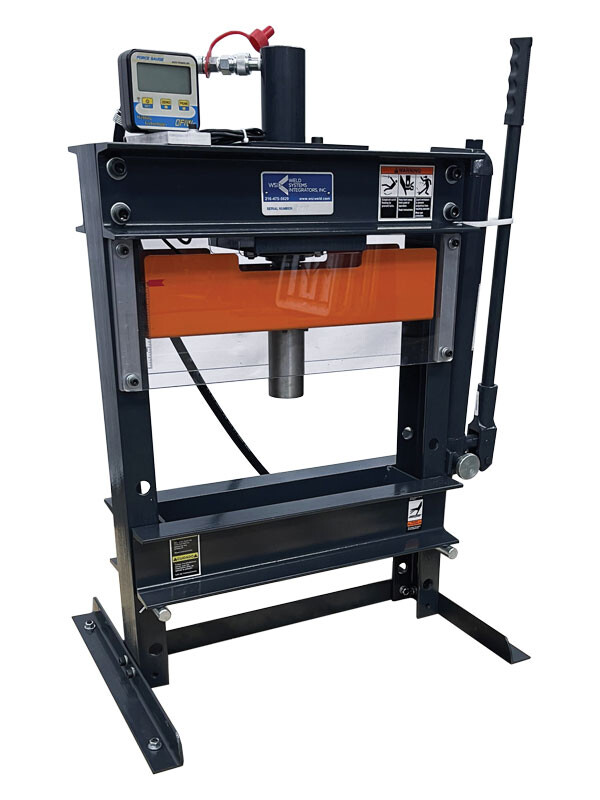

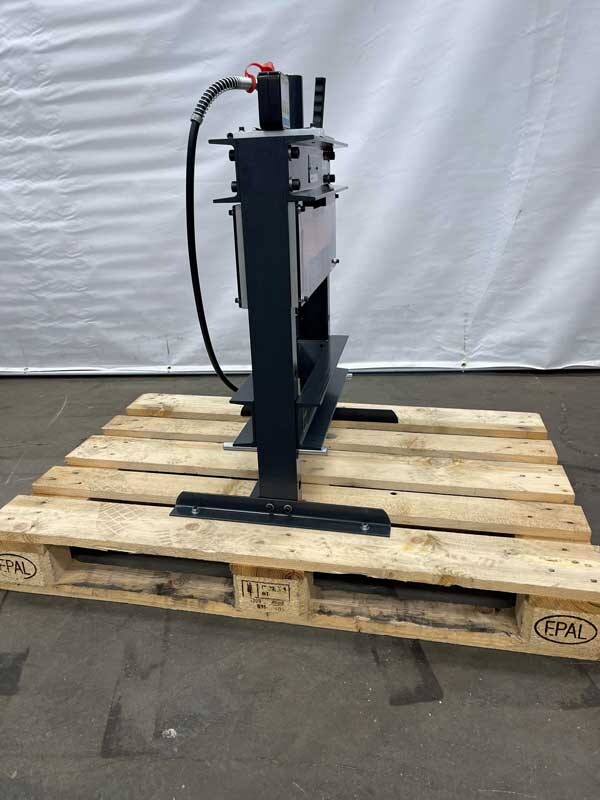

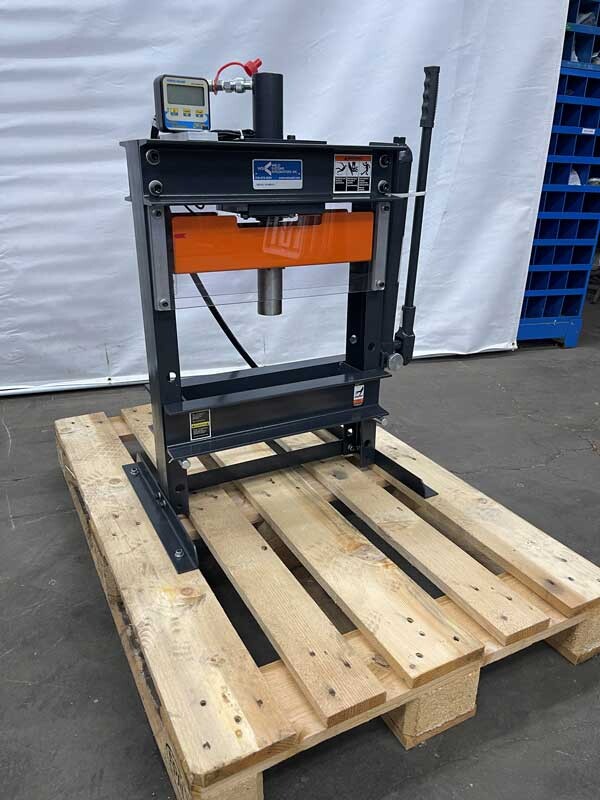

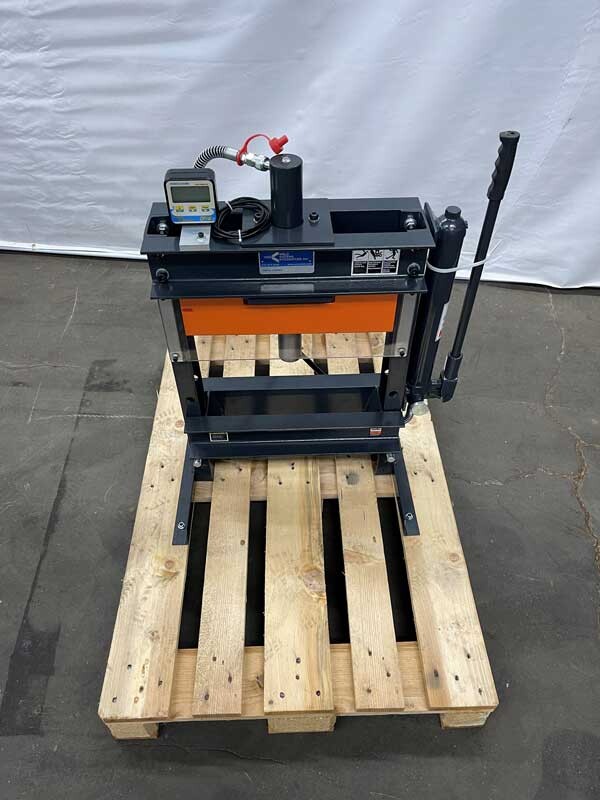

The Weld Systems Integrators (WSI) H-Type Push-Out Tester is a manually operated hydraulic weld testing machine used to measure the push-out strength of projection-welded nuts, studs, and other welded fasteners. With up to 9,000 lbs. of push-out force, the tester helps manufacturers verify weld strength, consistency, and quality through destructive testing.

Designed for resistance and projection welding applications, the H-Type Push-Out Tester features a heavy-duty H-frame design, digital force display, 4-inch stroke, full-width work surface, and safety guard. Test results can be measured in kN, daN, N, lbs., and kg. H-type push-out tester can be mounted to your workbench, cart, or another industrial work surface.

Weld Systems Integrators maintains H-Type Push-Out Testers IN-STOCK and FOR SALE at our Warrensville Heights, Ohio, location. Contact WSI for pricing, availability, application assistance, and shipping at 844-WSI-WELD or 216-475-5629.

Current IN-STOCK Inventory: 3

EQUIPMENT QUOTE
Quote RequestSpecificationsPush-Out Test Video

Please submit the following form to request additional information.

Enter: WSI H-Type Push-Out Tester on the following quote request form.

If you have any questions about WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    • “H” Frame Design
    • LCD, DFI-101 Meter with LCD battery-operated display
    • Manually operated hydraulic pump applies up to 9000 lb. max push-out force
    • Flat full-width working surface for samples
    • 4″ Stroke
    • Measures in kN, daN, N, lbs., and kg
    • Safety guard
    • Approximate weight 185 lbs. (85 kg)
    • 1 year parts and service limited warranty

    Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for additional details.
