TECNA 3680Si Industrial Welding Station

Includes 8692 Weld Gun and Bowden Retractor Balancer

(844) WSI-WELD
(216) 475-5629
EMail WSI
EQUIPMENT QUOTE

WSI Stock / Serial #: TECNA-3680Si

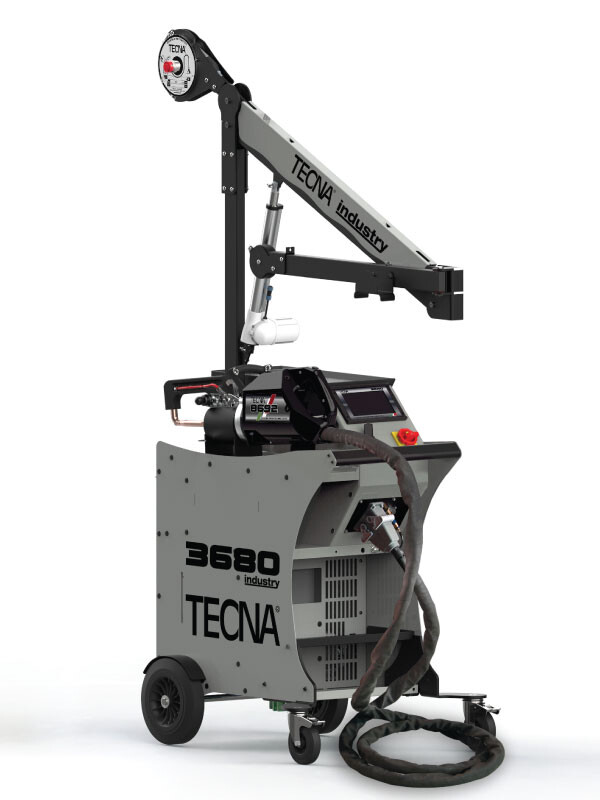

TECNA 3680Si – Industrial Welding Station with included 8692 weld gun and Bowden retractor balancer

  • Improved TECNA SMART MODE that will automatically adjust the welding parameters, weld by weld
  • New powerful 8692 patented gun, capable of 15,500 amps and 1,450 force lbs.
  • New motorized suspension arm
  • New Bowden balancer retractor with improved smoothness
  • Already predisposed for robot/cobot integration
  • Supply voltage: 400 VAC x 3-50 Hz | 220 VAC x 3-50/60 Hz
  • Main fuses: 32 A – delayed | 50 A – delayed
  • Welding current: 15.500 A
  • Content of the water tank: 25 l
  • Total weight without accessories: 363.76 lbs. (165 kg)

Weld Systems Integrators maintains an inventory of TECNA resistance welding equipment and industrial tool balancers at our Warrensville Heights, Ohio location. Contact our knowledgeable sales team at 844-WSI-WELD or 216-475-5629 for immediate assistance.

QUOTE REQUESTSpecificationsVideoDrawing and DimensionsHSS and UHSSArms and Electrodes

Please submit the following form to request additional information.

Enter “TECNA-3680Si” on the following quote request form.

If you have any questions, please call 844-WSI-WELD or 216-475-5629 and ask to speak with a WSI Engineer.

    Contact Information
    * Full Name:
    * Company Name:
    City:
    State:
    Postal Code / Zip:
    * Country:
    * Phone:
    * Email:
    Preferred way to be contacted:
    Equipment Needs Model / Serial Number: * Tell us about your application (what are you welding?): Send us a photo of your parts:

    * Required


    If you experience any issues submitting this form, please give us a call at 844-WSI-WELD or 216-475-5629.

    Technical Features
    Supply voltage 230V/60 Hz, 480V/60 Hz
    Main fueses 32 A – delayed 50 A – delayed
    Welding current 15.500 A
    Content of the water tank 6.6 gallons (25 liters)
    Dimensions (H / W / D) 91.73 / 28.35 / 38.58 in. (233 / 72 / 98 cm)
    Total weight (no accessories) 364 lbs. (165 kg)
    “C” gun 8692 8692
    Cables length 13.12 ft. (4 m) 19.69 ft. (6 m)
    Nominal power 50% ED 22 kVA
    Maximum welding power 129 kVA
    Thermal current 100% 2.05 kA
    No load secondary voltage 7.7 V
    Max. electrode force 1382.58 lbf. (615 daN) – 8 bar
    Gun weight without arms 23.81 lbs. (10.8 kg)
