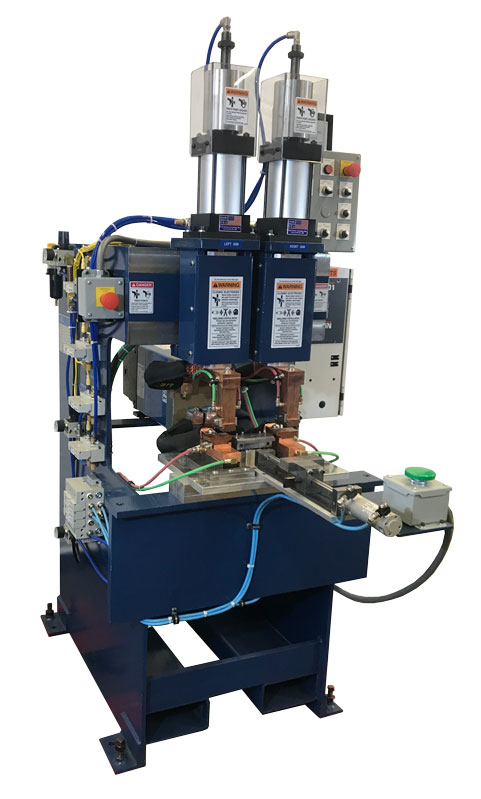

WSI Model 771 – Hinge Reinforcement Welder

Hollow metal door welders and door frame welders available from Weld Systems Integrators

WSI Model 771 – Hinge Reinforcement Welder is designed for spot and projection welding hinge reinforcements to hollow metal door jambs, one hinge per sequence. Weld Systems Integrators designs and manufacturers standard and custom resistance welders for the economical production of steel doors and door frames.

The WSI Model 771 – Hinge Reinforcement Welder is based on the LORS Model 771. WSI offers replacement parts and welder repair and upgrade support for the LORS Model 771.

Dual Gun Projection Welder, 120 kVA rated. Designed for projection welding hinge reinforcements to jambs, one hinge per sequence. Dual gun design assures correct weld force on both ends of hinge reinforcement and eliminates weld force distribution problems common to single gun projection welders. Welder features a pneumatically-operated jamb clamp and pin fixture with time delay to lower pin for transfer of jamb to subsequent position for welding. Includes an anti-tie down dual palm switch initiation and a solid-state welding control with up to 300 weld schedule capability.

Contact WSI about the WSI Model 771 – Hinge Reinforcement Welder

Give us a call at 844-WSI-WELD or +1-216-475-5629 to start a conversation about your WSI Model 771 – Hinge Reinforcement Welder application, machine availability, specifications, pricing, and lead times. Looking for another solution to your hollow metal door welding application? CLICK HERE for additional information on WSI door and door frame welding solutions.
